Polyester Glass Varnished Cloth

Components Basic Material:E-glass fiber cloth
Components Impregnated Varnished:Polyester varnish
Tmp. Class:F (155 ºC)
-Excellent dielectric, mechanical property and good oil resistance.

Email:info@ztelecgroup.com Whatsapp:+8613137718313

Product introduction

Polyester Glass Varnished Cloth product presentation:

Polyester Glass Varnished Cloth is mainly composed of E-glass fiber cloth and Polyester varnish. It has certain mechanical and electrical properties,mechanical behavior [character, and is used as insulation of F class motor and electrical bandaging gasket.

Polyester Glass Varnished Cloth Product video:

Polyester Glass Varnished Cloth Product parameters:

Model     No. Product Name



   Components Tmp. Class Features and Applications
Basic Material Impregnated Varnished
2210 Oil varnished silk Silk





Oil varnish





A   (105 ºC)

-Excellent softness and electric property.
-As liner and coil insulation for motors and electric appliances.
2310 Oil varnished synthetic cloth Synthetic fabric








2432







Alkyd varnished glass cloth





















E-glass fiber cloth









Alkyd resin









B (130 ºC)

-Excellent dielectric, mechanical property and heat resistance, good oil, fungus and humidity-heat resistance.
-As coil insulation for oil-immersed transformers and oil circuit breakers.






2440





Polyester varnished glass cloth





Polyester varnish







F (155 ºC)

-Excellent dielectric, mechanical property and good oil resistance,
-As liner and wrapping insulation for common motors and electric appliances.




2450





Silicone varnished glass cloth





Organic silicone varnish





H   (180 ºC)

-Excellent heat resistance, elasticity,good fungus, cold and oil resistance.
-As coil insulation for H-Grade motors and electric appliances.

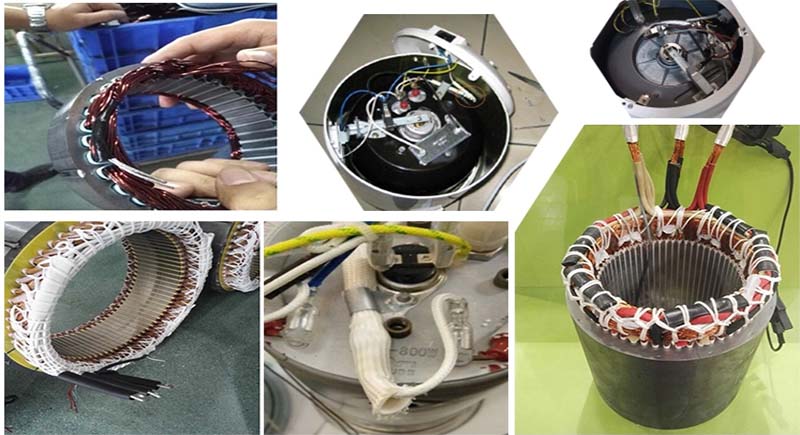

Polyester Glass Varnished Cloth Product use:

-Excellent dielectric, mechanical property and good oil resistance,

-As liner and wrapping insulation for common motors and electric appliances.

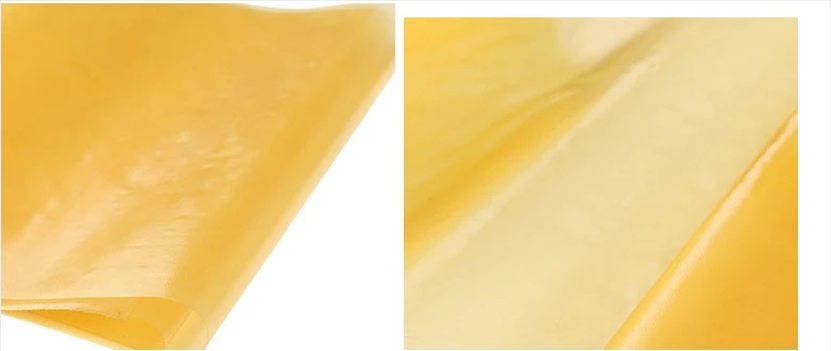

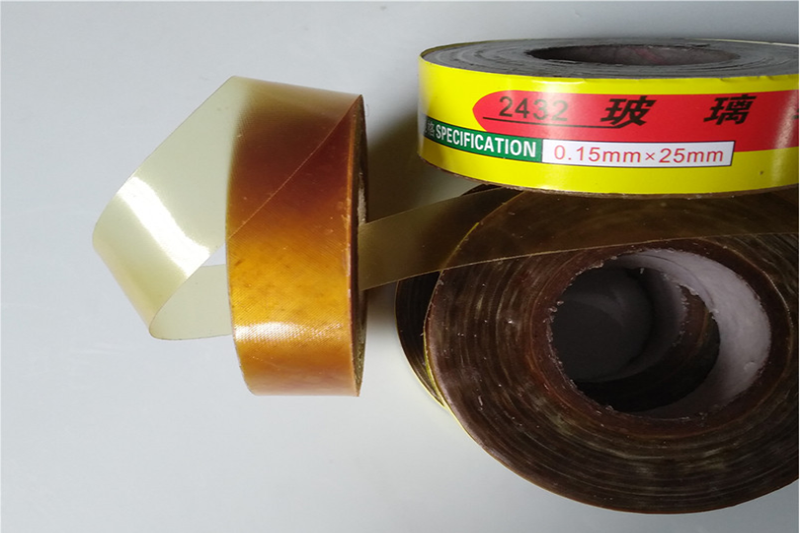

Polyester Glass Varnished Cloth Product display:

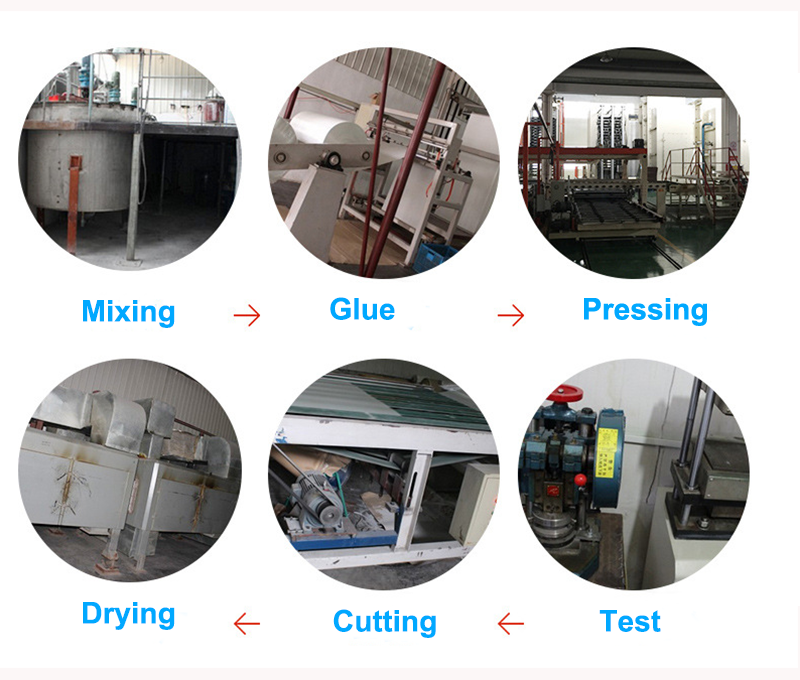

Polyester Glass Varnished Cloth Product manufacturing process:

Polyester Glass Varnished Cloth Packaging and shipment:

Packing: The moisture-proof package of the plastic bag is put into the carton again.

Storage: dry and ventilated room, avoid high temperature and direct sunlight, and the storage period is 12 months

Polyester Glass Varnished Cloth FAQ

Q1: How about MOQ?

50kg MOQ is usual. But we always quoted as customer’s real need.

Q2: Can you send samples for testing?

yes,we can provide Samples are freely.

Q3: How can you guarantee the quality of mass goods is same as the sample sent to me before?

We kept another same sample and marked on company when we sent to customer.

Q4: Which package do you use?

Package is important part to avoid goods breaking in transportation. We will choose suitable packing depend on materials.

Q5: When customer respond quality issues after pick up goods, how to deal with?

1) Customer could supply photos of issued goods for our sales staff and then we’ll verify which part is wrong.

2) If the issue is confirmed, company will negotiate with customers and compensate in coming orders.
