Length:regulay 25mm,other size also can made
Rated Voltage:6kv
Usage:Electrice Power
Feature:Heat-Resistant(155℃)
Email:[email protected] Whatsapp:+8613137718313

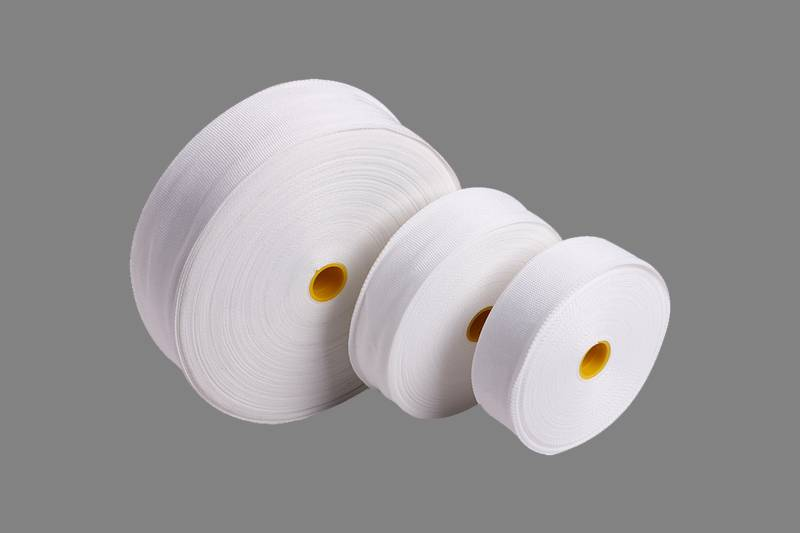

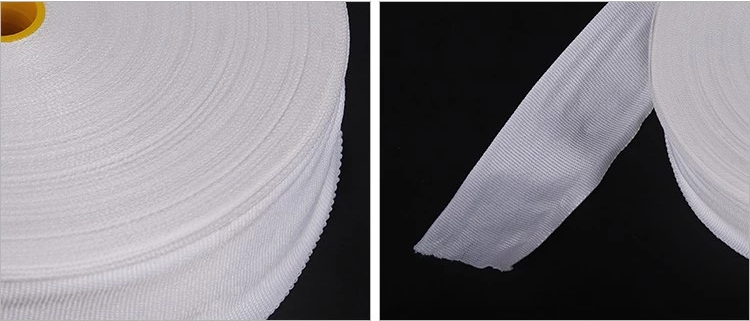

Electrician Polyester Shrink Tape Description:
1. This product is woven by modified polyester fiber.
2. The heat resistance is F Class (155 ° C).
3. When the temperature reaches 150 degrees for 10 minutes, the shrinkage rate reaches 30%.
4. The product is beneficial to the fastening and integrity of the ligating part, and the tensile strength is high, and the workpiece processed by the shrinkage belt can save the amount of the immersion paint and the appearance is standardized.
5. It is suitable for the binding and fastening of wire and other parts of motors, transformers, reactors and other products
| ndicator name | Unit | Index value | |||
| Nominal thickness | mm | 0.23 | 0.26(oblique) | 0.29 | |
| Width deviation | mm | ±1 | |||
| Shrinkage | % | ≥30 | |||
| Tensile Strength | N/10mm | ≥200 | |||
| Broken | Single | mm | ≥200(no) | ||
| Double root | ≥30(no) | ||||
| Side | – | Unaffected loose edges, tight edges, thick edges, thick edges | |||
| Inclusion | – | None | |||
| Stains | – | No rust, the sum of oil length and width ≤14mm | |||
| Broken head | – | Allow each disc to have two segments, each segment not less than 3m in length | |||
| Hole | – | There should be no warp, latitude, or more than 3 holes | |||
| Storage period | Month | The date from the factory is 12 months, and the product is tested according to the product standard for more than 12 months. | |||
About transformer Purpose Polyester Fiber Shrinking Tape Shrinkage Insulating Banding Tape,usually we will be packed by three-layer, the first layer is a plastic film, the second layer is a carton plus a packing tape, and the third layer is wrapped with a plastic film. This will prevent the goods from getting wet and rubbed during transportation and ensure that the product arrives at your destination in good condition.
1.Q: Are you trading company or manufacturer ?
A: We are a manufacturer, We have more than 61 years experience in producing insulation materials.
2.Q: Where is your factory located? How can I visit there?
A: Our factory is located in Xuchang,Henan provience.
3.Q: Which certification do you have?
A: The plant has passed the certificate of ISO 9001 quality system certification;
The insulation system has been approved by UL;
The products have passed ROHS test.
4.Q: Can I get samples for free?
A: Of course, we can sent you for free, customers just need to pay a litter shipping change.
5.Q: How long is the delivery time?
A: Generally it is 5-15 days if the goods are in stock, or it is 15-30 days.
If you need our products please write down any questions, we will reply as soon as possible.
