Insulation Crepe Paper

Insulation Crepe Paper for transformer

Type:Insulation Paper, Insulation Materials
Pulp Material:Wood Pulp
Application:High Temperature
Thickness: 0.05mm, 0.075mm, 0.13mm and more

Email:[email protected] Whatsapp:+8613137718313

Product introduction

Insulation crepe paper for transformer product description:

Insulation crepe paper for transformer is made of insulating kraft paper with creping.

Has very good oil-soluble properties, and is widely used in oil-immersed transformers, instrument transformers, reactors and other parts of package insulation, especially as lead parts of the insulation package, thereby improving the electrical insulation and mechanical properties of the product structure.

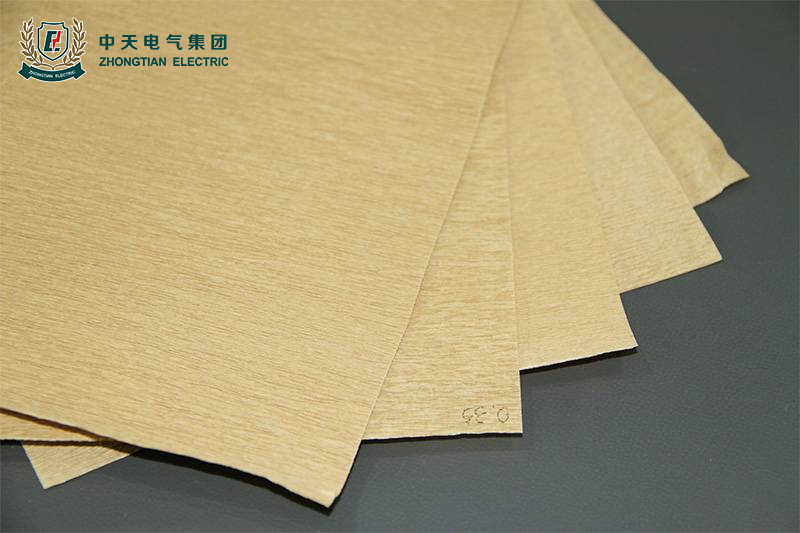

crepe-paper



Insulation crepe paper for transformer product video:

Insulation crepe paper for transformer product features:

1.Insulation class A (105 °C)

2.Color : natural brown, beige

3.High purity and high oil-absorption

4.Good dielectric strength

5.Excellent compatibility with insulating liquids (mineral oils, silicon oils and ascerol oils)

6.Free from conductive particles

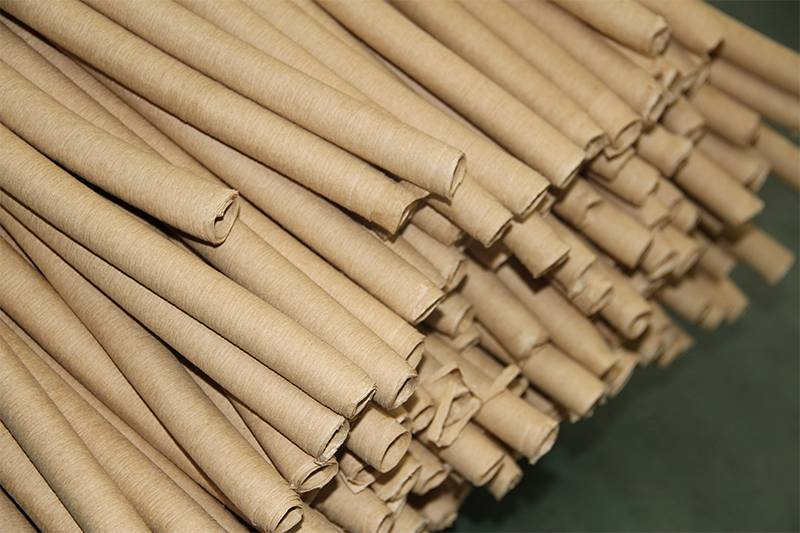

crepe paper



Insulation crepe paper for transformer product parameters:

Standard:JB/T 10441.3-2004
No. Properties Unit Base Paper Thickness
0.05mm 0.075mm 0.13mm
1  Thickness of  Crepe Paper mm 0.35±0.05 0.38±0.08 0.70-0.90
2 Ash Content % ≤0.7 ≤0.7 ≤0.8
3 Moisture Content % ≤7.0 ≤7.0 ≤8.0
4 Water Extraction PH 6.0-8.0
5 Oil Contamination % <0.1
6 Tensile Strength MD N 30 40 50
CD N 20 30 40
7 Oil Absorption Height MD mm/10min ≥7.0
mm/60min ≥30.0
CD mm/10min ≥20.0
mm/60min ≥50.0
8 Crepe Ratio % 50
9 Power Frequency Breakdown Voltage V/layer ≥950 ≥1000 ≥1000
10 Conductivity ms/m ≤10
11 Appearance density g/m² 60±10% 110±10% 120-150



Insulation crepe paper for transformer application:

Insulation crepe paper for transformer is made of insulating kraft paper processed by crinkling.

Insulation crepe paper for transformer has high compatibility with the transformer oil, which can be used in oil-immersed transformer, mutual inductor and electric reactor.

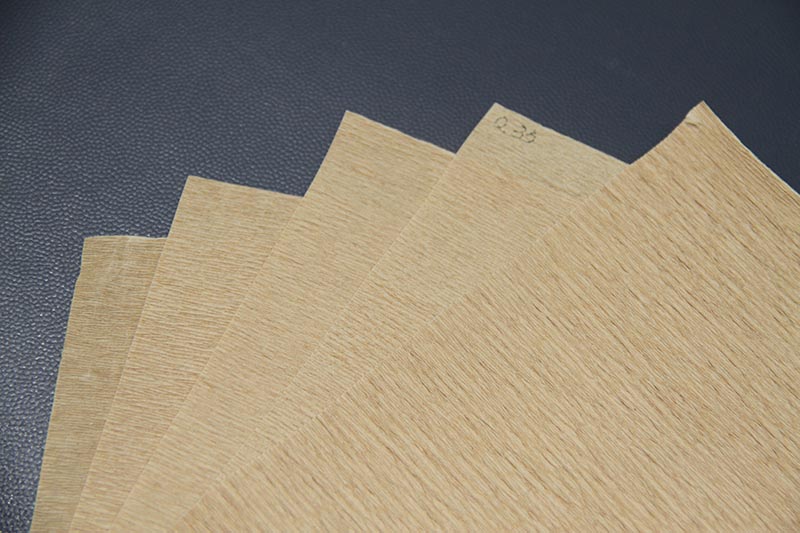

crepe paper



Insulation crepe paper for transformer product display:

Insulation crepe paper for tansformer is one of the most important solid insulation materials used in transformers.

Its quality directly influences the life span of the transformer.

The BDV is enhanced by up to 80% as compared to base kraft paper.

To ensure of best quality of Crepe paper, the base kraft paper is manufactured using longer fibers of pure wood pulp.

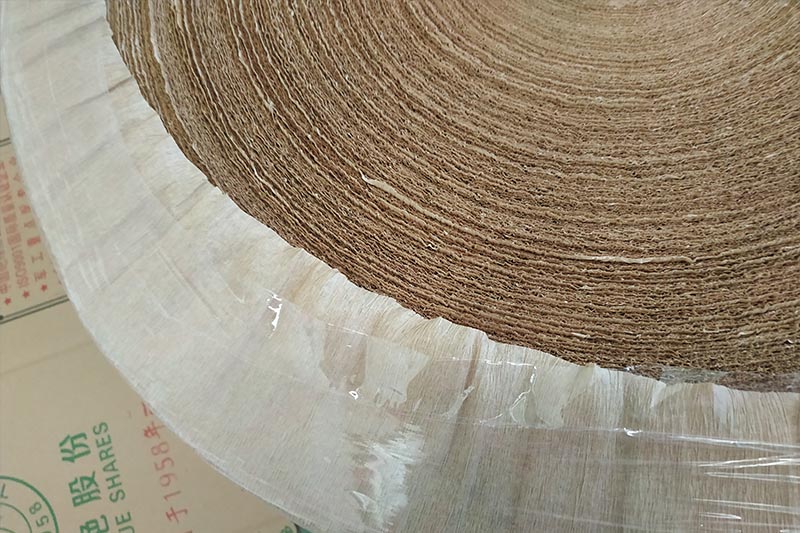

crepe paper

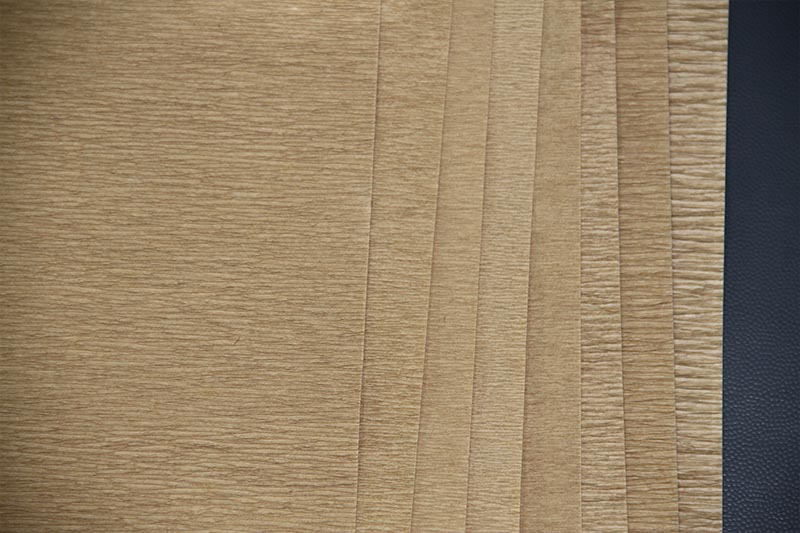

crepe paper

Insulation crepe paper for transformer packing and shipping:

1. ZTELEC standard packaging for Insulation crepe paper

2. According to customer needs

crepe paper

Insulation crepe paper for transformer service:

1. Pre-sale services

We offer 1V1 personal service and our professionals will provide you with technical guidance and free samples.

2. After sales service

Our staff will communicate with you on a regular basis and any insulation issues can be consulted in a timely manner.

3. Product Service

We offer Insulation crepe paper size customization and Insulation crepe paper processing services.
