DMD-Epoxy-Prepreg-Material

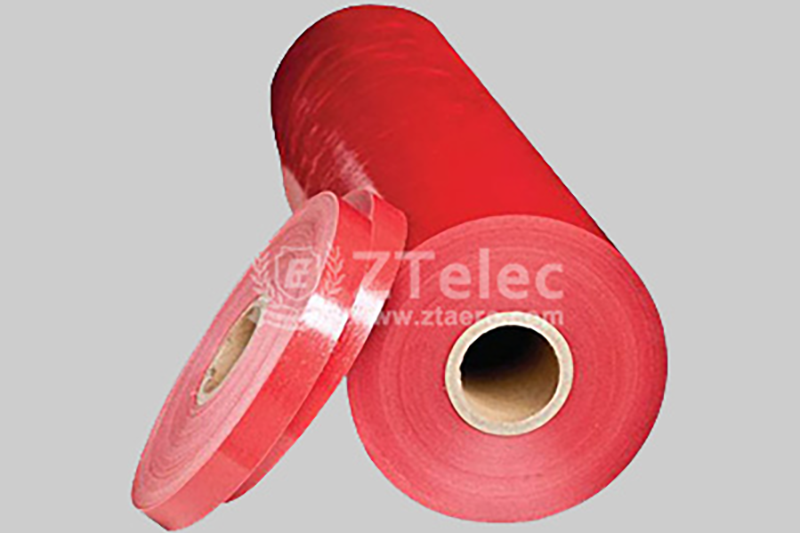

Electrical Insulation Paper DMD Prepreg

Type:Insulation composite material, Insulation Materials
Application:High Voltage
Thickness:0.15/0.18/0.20/0.25/0.30(mm)
Width: 980(mm)(Customized Size)

Email:[email protected] Whatsapp:+8613137718313

Product introduction

Electrical insulation paper DMD prepreg is made of DMD coated with F-class modified epoxy resin in semi-solidified state by heating.

Electrical insulation paper DMD prepreg can quickly solidify at a certain temperature and adhere firmly to copper foil, and thus form insulation structure layer with much lower shrinkage.

Electrical insulation paper DMD prepreg is widely used for layer insulation of dry-type transformer coil, slot insulation and phase insulation of Class F motor.

Electrical insulation paper DMD prepreg product parameters:

No. Projects Unit

Value

1 Thickness mm

0.15

2 Thickness tolerance mm

±0.02

3 Tensile strength( lengthwise no bending) N/10mm

≥70

4 Soluble resin content G/㎡

≥45

5 Volatile content %

≤1.5

6 Breakdown voltage KV

≥7.0

7 Tensile shear strength MPa

≥3.0

8 Tempeature index

≥155

Notice: Can also negotiate if customer have special requirements,

Note:The data in the above table only represents typical or average data, just for reference in practical application. It does not bear any responsibility for the use of the product or related legal liability.

Electrical insulation paper DMD prepreg product video:



Electrical insulation paper DMD prepreg application:

1.low voltage coil
2.dry-type transformers
3.class B and F motor
4.electric slot insulation
5.copper (aluminum) foil wrapped liner insulation



Electrical insulation paper DMD prepreg product features:

Electrical insulation paper DMD prepreg is Class F insulating material.

Electrical insulation paper DMD prepreg has long shelf life at room temperature, low precuring temperature and time, showing excellent electrical insulation, bonding and heat-resistant properties.



Electrical insulation paper DMD prepreg product display:

Electrical insulation paper DMD prepreg (class F) is formed in the process of precuring the modified F-class DMD with Impregnation of hi-temp resistant Epoxy resin into B-stage by baking.

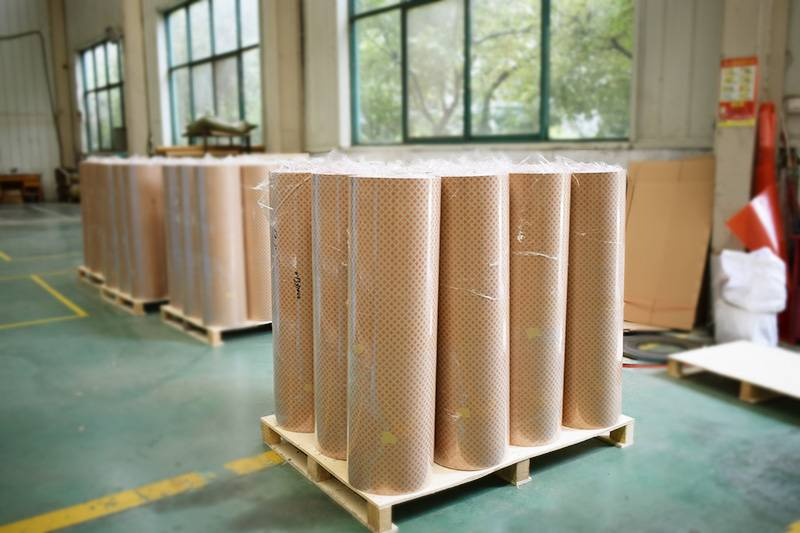

Electrical insulation paper DMD prepreg packing and shipping:

Electrical insulation paper DMD prepreg is wrapped by proctective film;

Electrical insulation paper DMD prepreg is packed by standard import & export cartons or iron pallets.

Electrical insulation paper DMD prepreg FAQ:

Q:What’s my consideration when I choose electrical insulation paper DMD prepreg?

A:The raw materials must be A quality.

Q:Can I be a distributor of ZTELEC?

A:Of course you can.

Q:What are the benefits of being a ZTELEC distributor?

A:
-Special discount

-Marketing protection.

-Prepare the stock for you and offer a short delivery time for you.

-Point to point technical suppors and after-sale services.

Q:How can I become a distributor of ZTELEC?

A:Contact us immediately for further details by sending us an inquiry.

Q:What are your main products?

A:For oil immersed transformers,like Diamond dotted paper/DDP, Crepe paper tube, pressboard and so on.

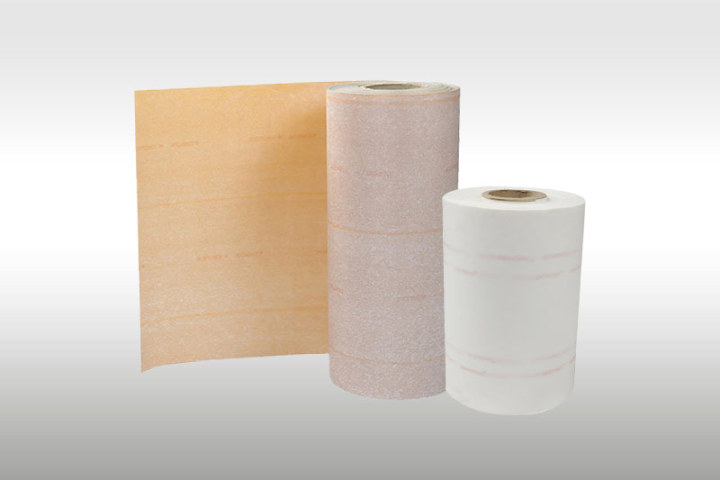

For dry type transformers, like Class F DMD, NMN, NHN and so on.

For electrical motors, like Polyester film, DMD, NMN, NHN Fish paper with polyester film, PMP and so on.

In addition, we also produce transformers and enameled copper(aluminum) wires.

Q:Could you supply free samples?

A:Yes,the sample is free for YOU only pay the express.
