Oil Strut Belt for transformer

Oil strut belt for transformer is made of electrical board in the shape of stripe adhered to DDP.It can be combined closely with transformer coil and makes coil possess more excellent mechanical and electrical propeties.

Oil strut belt for transformer product video:

Oil strut belt for transformer product parameters:

No.	Thickness	mm	0.08	0.13	0.17	0.20	0.25	0.30
2	Thickness Tolerance	%	6.5
3	Density	g/cm3	≥0.85
4	Tensile Strength	MD	KN/m	7.5
		CD		3.7
5	Tear Strength	m·N	500	1000	1500	2000
6	Dielectric Breakdown	Kv	0.6	0.9	1.2	2.2	2.75	3.3
7	Aqueous Extract	–	6.8~8.5
8	Bond Strength	Kpa	450
9	Ash Content	%	1.0



Oil strut belt for transformer application:

Duct spacing which oil strut belt for transformer can be used for main and cooling ducts in oil filled distribution transformers.



Oil strut belt for transformer product features:

1.High Purity and oil absorption.

2.Good compatibility with liquid dielectrics strength.

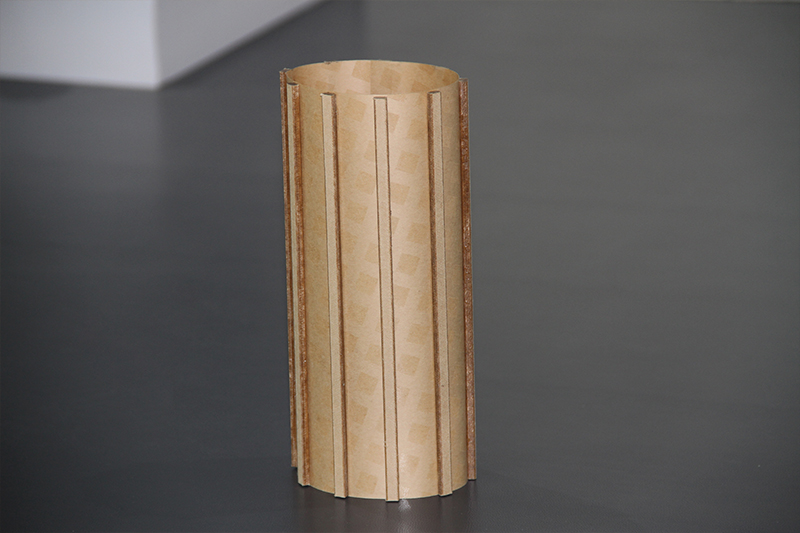

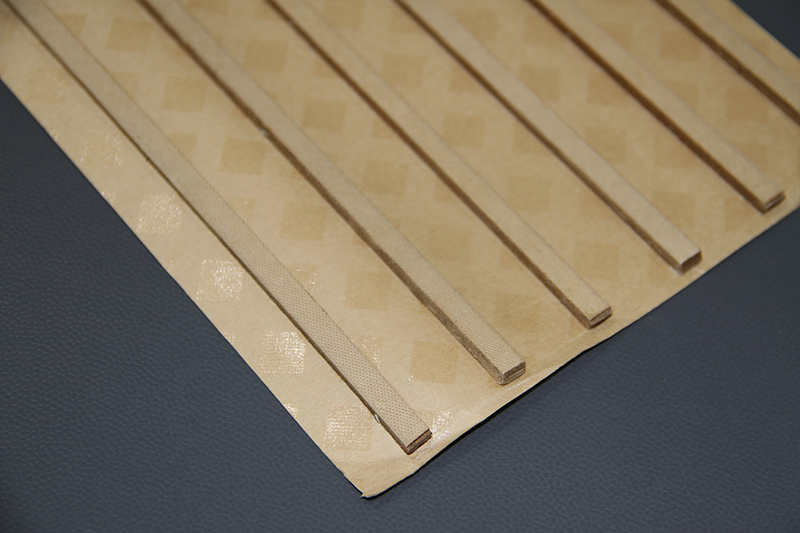

Oil strut belt for transformer product display:

Bonding DDP and the strip of electrical board with adhesive on a certain distance.

The combination with transformer coil is very firm, also can avoiding the traditional variability and easy displacement of corrugated cardboard, which make this coil has more excellent mechanical and electrical properties and widely used in oil-immersed transformers.

Oil strut belt for transformer manufacturing process:

1.Bonding DDP and the strip of electrical board with adhesive on a certain distance.

2.double surface DDP paper (top quality)

3. single surface DDP paper

4. kraft paper with duct strip

Oil strut belt for transformer packing and shipping:

Oil strut belt for transformer is wrapped by proctective film;

Oil strut belt for transformer is packed by standard import and export cartons or iron pallets.
