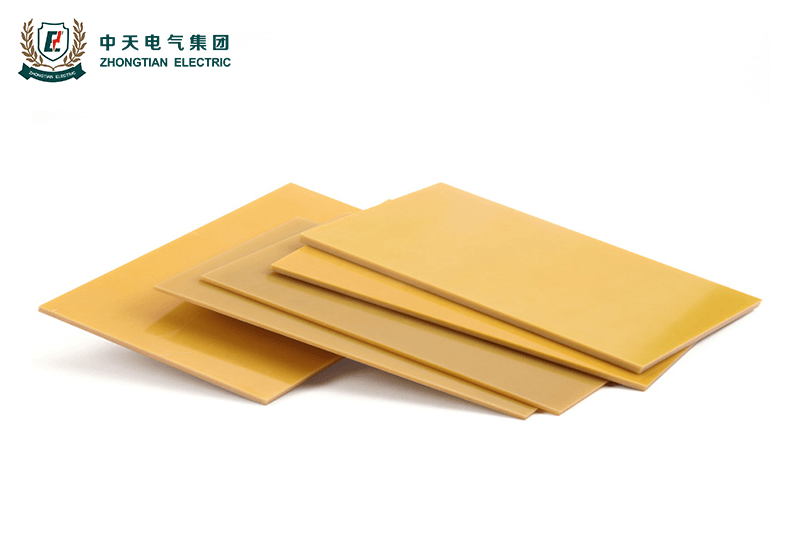

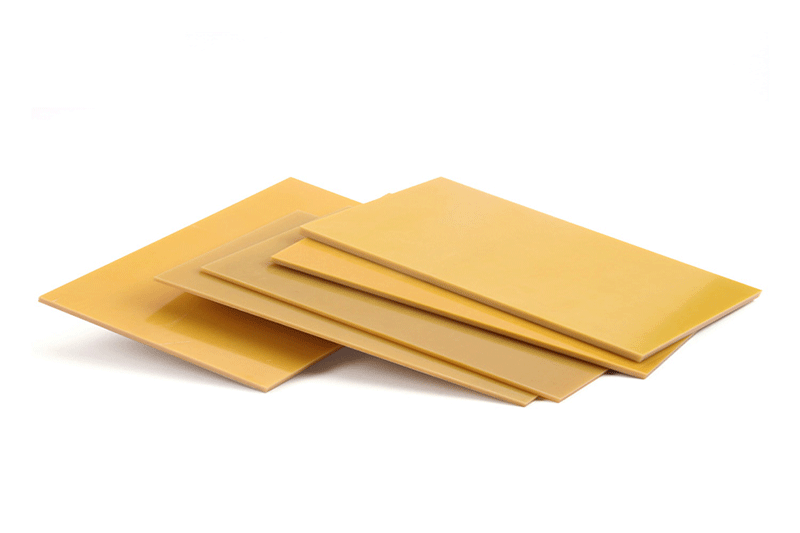

G11 material

G11 material is known for its high strength, low moisture absorption, and excellent electrical properties. It is a Class F rigid insulation material with a wide range of applications. It serves as a key component in slot wedges for small motors and major components in turbo-alternators and electronic applications.

Advantages:

1.G11 material excels in moisture resistance and heat resistance.
2.It maintains strong mechanical properties even at high temperatures.
3.It exhibits excellent electrical performance in both dry and wet conditions.

application：

Slot Wedges	Machine parts	Transformer baffles
Terminal Boards and Tag Strips	Bolt Insulation	Electromechanical Components
High-Voltage Switches	FPC Reinforcing Sheets	Wiring Boards
Planetary Gears	Electronic Insulation Fields	Power Distribution Cabinets

parameter：

General Properties：
Property	Unit of measure	Typical Value
Density	g/cm3	1.95-2.03
Water Absorption (5mm)	%	≥0.05
Flame Retardant	UL94	HB
Electrical Properties：
Property	Unit of measure	Typical Value
Electrical Strength ⊥	kV/mm， thickness<3mm	≥15
Electrical Strength ∥	kV	≥50
Tracking Resistance	PTI	≥200
Mechanical Properties：
Property	Unit of measure	Typical Value
Benging Strength	MPa	≥450
Tensile Strength	MPa	≥350
Compressive Strength ⊥	MPa	≥450
Modulus Of Elastricity	MPa	≥24000
Impact Strength ∥	kJ/m2	≥33
Thermal Properties：
Property	Unit of measure	Typical Value
Thermal Charactersitices	℃	155

Video:



FAQ:

Q1: What is the difference between G10 and G11 materials?

G10 material is slightly better, while G11 material is a superior insulator capable of withstanding higher temperatures. G-11 and similar glass fiber reinforced thermosetting materials are sometimes referred to as Garolite.



Q2: What is G11 material?

G-11 glass cloth epoxy resin is a thermosetting industrial glass fiber composite laminate board. It is composed of continuous filament glass cloth material impregnated with epoxy resin adhesive. It is typically identifiable by its natural color, ranging from yellow-green to amber.



Q3: What colors are available for G11 material?

We offer yellow and water green colors.



Q4: How should G11 products be stored?

G11 products should be wrapped with packaging film, packed on a pallet, and stored horizontally in a dry and clean room at room temperature. They should be kept away from moisture and fire. The recommended storage period is 12 months.



Q5: Do you have certifications and samples?

Yes, we have obtained ISO9001, ISO 14001, and UL certifications. Samples for testing purposes are available.



Q6: Do you support customization?

Yes, we support customization. We can provide one-on-one customization based on specific requirements and ensure timely and quality processing of custom orders.
