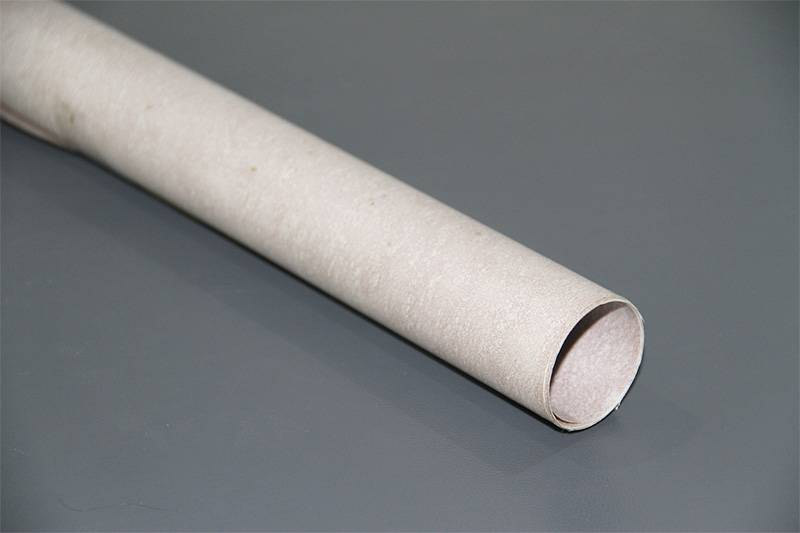

PMP Capacitor Insulation Paper

PMP Capacitor Insulation Paper

Type: Insulation Paper
Application: High Temperature
Colur: Regular color is natural brown.Special colours can be provided on request.

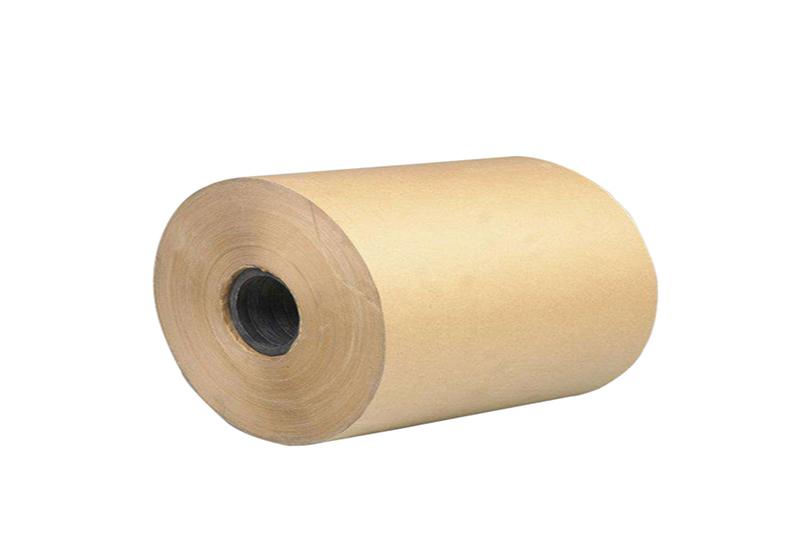

Form: roll, sheet, strip

Email:[email protected] Whatsapp:+8613137718313

Product introduction

PMP capacitor insulation paper product description:

PMP Capacitor Insulation Paper

Three layers: polyester film is bonded with insulating paper.

Middle Layer: Polyester film(PET) for Electrical Purposes.

Outer Layer: 100% Sulfate wood pulp presspaper.

Four layers can be produced on request PMP capacitor insulation paper.

PMP Capacitor Insulation Paper

PMP capacitor insulation paper product video:

PMP capacitor insulation paper product parameters:

No. Properties Unit Value
1 Nominal Thickness mm 0.05 0.075 0.1
2 Thickness Tolerance mm ±0.005 ±0.007 ±0.01
3 Grammage & Deviation g/㎡ 65±7 90±9 140±14
4 Tensile Strength(MD) N/10mm ≥50 ≥70 ≥100
5 Breakdown Voltage KV ≥5 ≥7 ≥10
6 Normal Bonding Strength No Delamination
7 Thermal Bonding Strength 130±2℃/10min No Delaminating, Blister or Gummosis
8 Shrinkage % ≤3

PMP capacitor insulation paper application:

PMP capacitor insulation paper is mainly used for casting voltage mutual inductor, special E-class electrical motor and other electrical equipment.

As wrapping insulation of electric device and automatic inserting winding slot insulation of small size electric motor.

PMP Capacitor Insulation Paper

PMP capacitor insulation paper product features:

PMP Capacitor Insulation Paper

PMP capacitor insulation paper insulation class: B class (130 °C)

Both softness and mechanical strength are considered, and formability and wettability are good.

Double sides capacitor paper and Polyester film flexible Laminate is a three-layer flexible composite material.

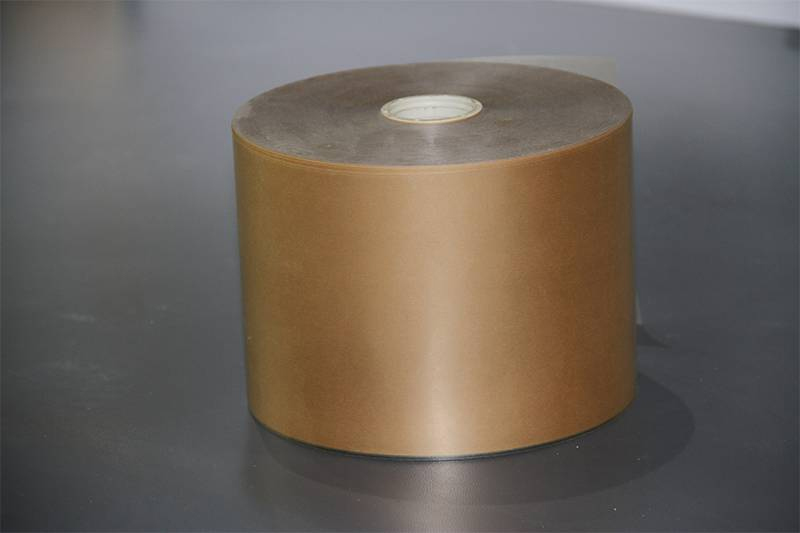

PMP capacitor insulation paper product display:

PMP capacitor insulation paper is a kind of composite material made of two-layer of electric insulation fiber paper adhered to one-layer of polyester film in between.

It has excellent dielectric and mechanical properties.

PMP Capacitor Insulation Paper

PMP capacitor insulation paper service:

PMP Capacitor Insulation Paper

1. Problems occur during the quality warranty period and are returned unconditionally for PMP capacitor insulation paper.

2. A customer complaint of less than $1,000, paying compensation directly; more than $1,000, giving a solution at the latest 24 hours.

3.365 days, return if you are not satisfied.

4. Receive customer news during normal working hours, we will reply within 4 hours of the day.

5. If there is a shoddy, we will set an award for the reporter.

PMP Capacitor Insulation Paper
