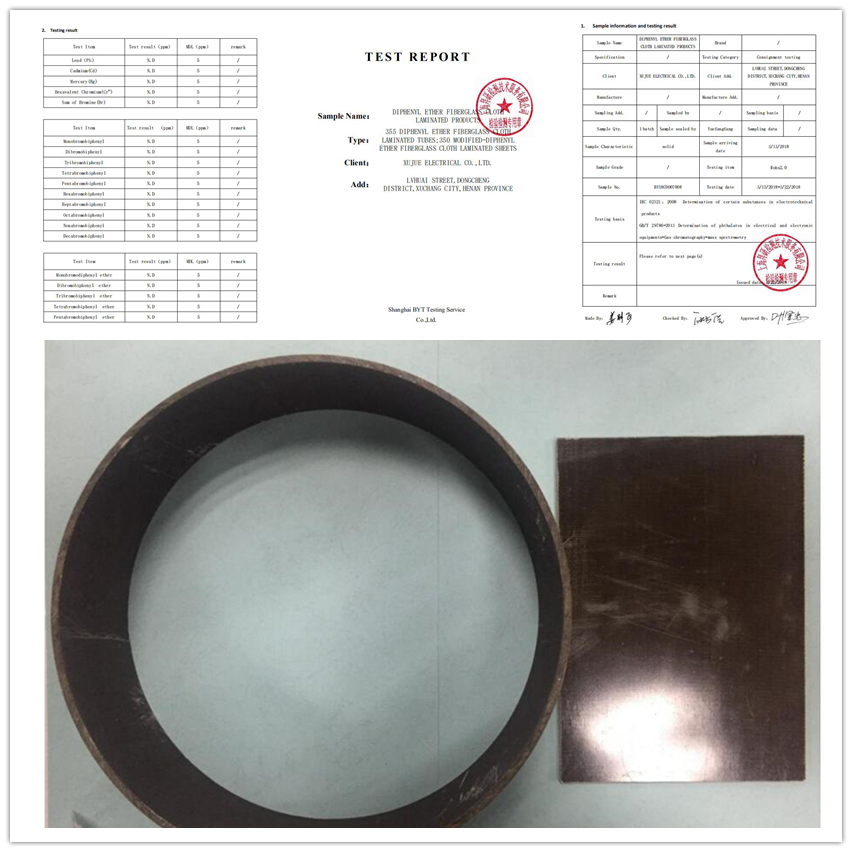

There are three ISO certificates for quality certification. The certificates will be shown later. ISO
After receiving the advance payment, the production cycle is 15-25 days. And the transportation cycle should be calcul……
We supply with installation guide and user manual for each transformer. If you do not understand them. We will offer v……
Color: dark brown
Density: 1.8g / m³
Length: 1000mm
Resin: Diphenyl ether
Temperature resistance level: H level
Support secondary processing
Email:[email protected] Whatsapp:+8613137718313

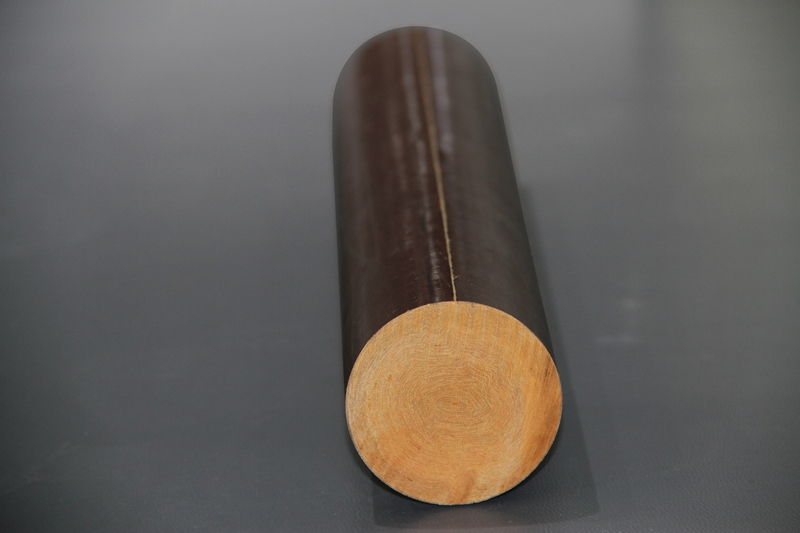

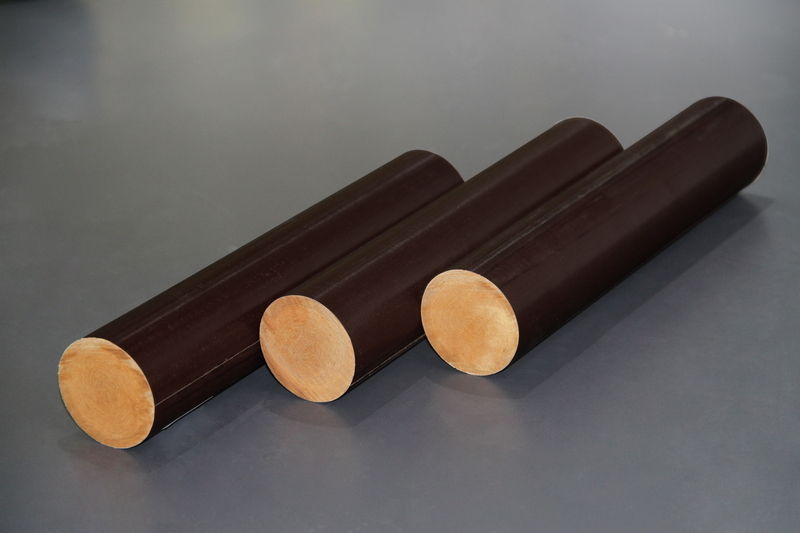

Diphenyl ether glass cloth laminated rod is a tubular laminate made of alkali-free glass fiber cloth impregnated with diphenyl ether resin and baked and pressed.
| chinese name | – | 3851 |
| IEC | – | – |
| color | – | Brown |
| density | g/m³ | 1.7-1.8 |
| Vertical layer bending strength (normal) | MPa | ≥220 |
| Axial compressive strength | MPa | ≥175 |
| Parallel layer breakdown voltage (90 ° C transformer oil) | Kv | ≥40 |
| Insulation resistance after immersion in water | MΩ | ≥1000 |
| Dielectric loss factor (50Hz) | – | ≤0.03 |
| Water absorption | mg/cm2 | ≤3 |
| Temperature index | – | 180 |
Pre-sales Service
We offer personalized 1-on-1 assistance for our products. If you have any questions, our experts will provide you with technical guidance and free samples.
After-sales Service
Our team will regularly communicate with you, ensuring that you can promptly consult us for any insulation-related issues.
Product Services
We provide customized product sizing and processing services.
