Garolite G10 G11 Fr4 Fiberglass Sheet

Color: Green/Water Green/White/Yellow/Black
Thickness: 0.1-100mm
Size:1020*1220 /1020*1020 /1220*2440 /1220*2040 (support customize)
Heat resistance rating: Class F (130 ° C)

Email:[email protected] Whatsapp:+8613137718313

Product introduction

Garolite G10, G11, and FR4 are all types of laminated fiberglass sheets that are primarily composed of electronic-grade glass fiber cloth and heat-resistant epoxy resin. These materials exhibit excellent insulation properties.

G10 G11 FR4 Fiberglass Sheet Trait:

1. Excellent low water absorption rate, water absorption rate is almost 0; after water immersion for 24 hours, the water absorption rate is only: 0.09%.

2. Excellent heat resistance and flame retardancy, heat resistance grade up to 160-180 ° C; flame retardancy: UL94V-0 grade,

3. Excellent mechanical processing properties. Can be stamped, cut and processed according to customer requirements.

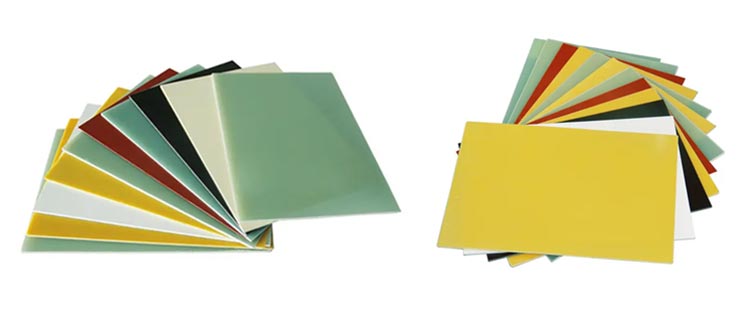

G10 G11 Fr4 Fiberglass Sheet

Uage of Garolite G10 G11 Fr4 Fiberglass Sheet:

Epoxy Resin Fiberglass Sheet Video:

G10 G11 FR4 Fiberglass Sheet Parameter:

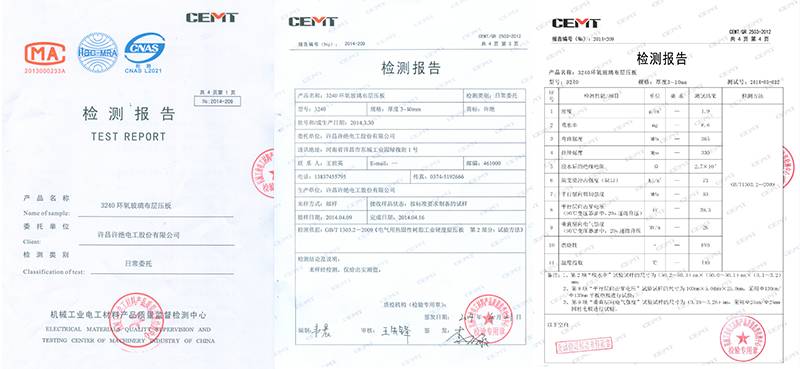

FR4 Fiberglass Sheet Certification:
