GPO-3 insulating machined parts and sheets possess excellent insulation properties, flame retardant characteristics, and mechanical strength. They have become commonly used materials to replace traditional phenolic boards and some epoxy boards in medium and low voltage electrical equipment, new energy systems, and rail transportation. This article will systematically introduce GPO-3 thermosetting polyester materials from multiple aspects.

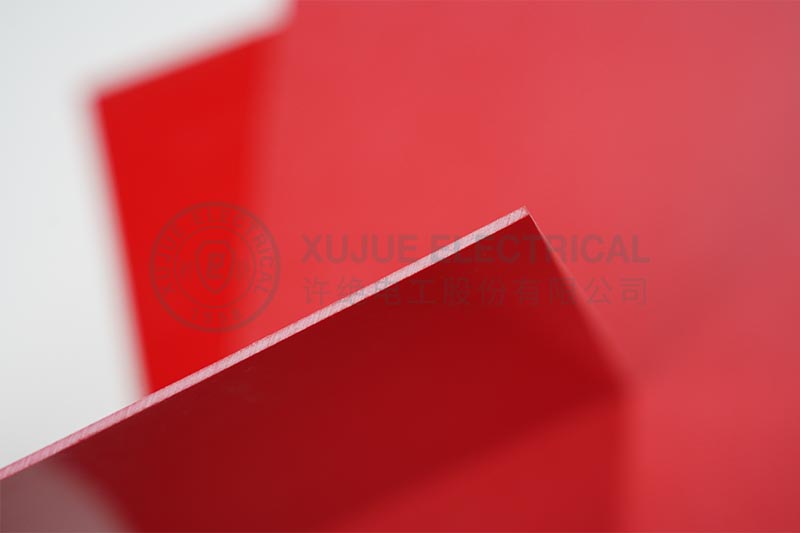

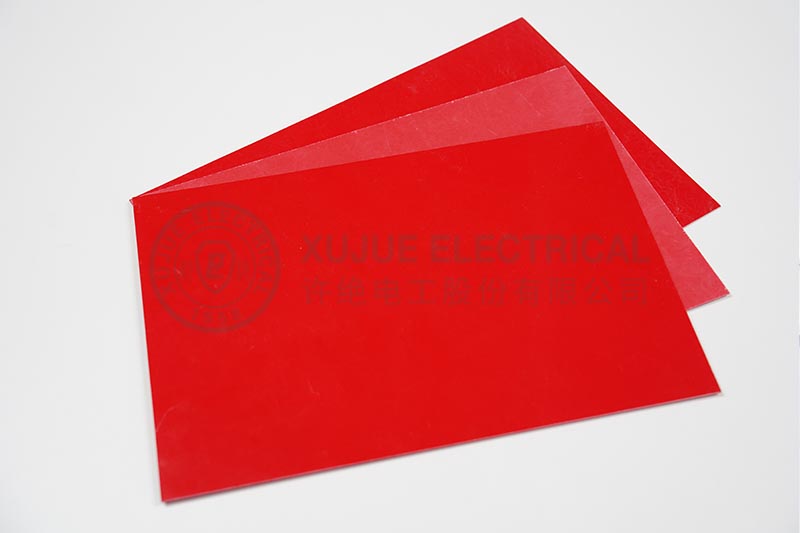

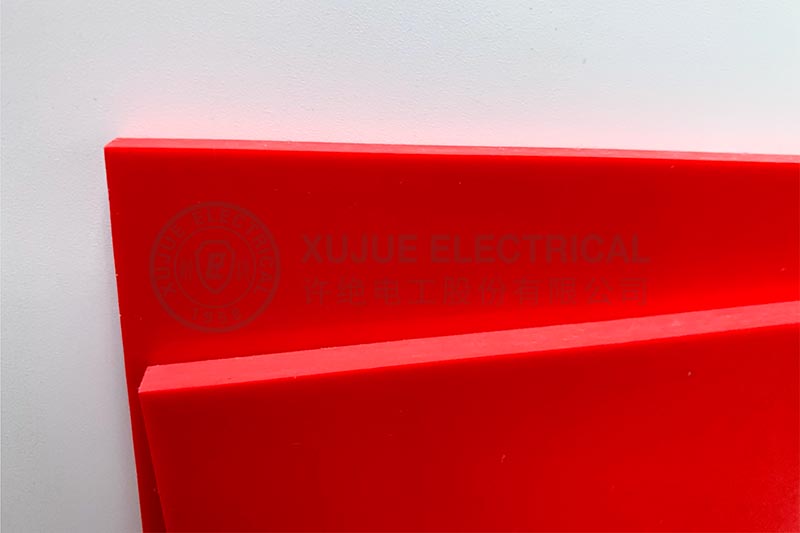

GPO-3 sheet is a glass fiber reinforced unsaturated polyester resin laminate, belonging to thermosetting composite insulation materials. This material conforms to the NEMA GPO-3 standard and has flame retardant, insulating, and heat-resistant properties, making it suitable for the processing and manufacturing of various electrical insulation structural components.
Utilize a glass fiber reinforced structure.
Thermosetting polyester resin as matrix.
Smooth surface and uniform color.
It can be processed into various complex insulating parts.

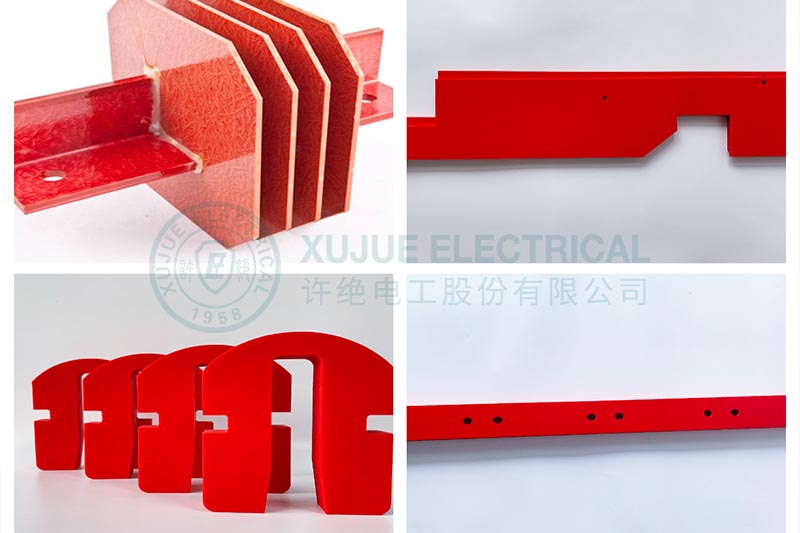

GPO-3 sheets can be processed into various insulating structural parts according to drawings, including:
Insulating brackets
Insulating partitions
Insulating pads
Insulating baffles
Insulating mounting bases
Custom-shaped structural parts
These machined parts are commonly used in the internal structures of switchgear, circuit breakers, busbar systems, and distribution boxes.
♦ Flame Retardant Properties: GPO-3 has a UL94 V-0 flame retardant rating, reducing the risk of fire during electrical short circuits or overloads.
♦ Electrical Insulation Properties: GPO-3 has high surface and volume resistivity. It is suitable for insulation in medium and low voltage electrical systems.
♦ Mechanical Strength: GPO-3 has high flexural strength and good impact resistance. It is suitable for structural supports and fixed components.
♦ Processing Properties: GPO-3 is easy to cut, drill, CNC machine, and form, meeting the needs of mass production.
♦ Heat and Aging Resistance: GPO-3 can operate at temperatures up to 155℃. It is suitable for environments with long-term stable operation.
Although GPO-3 laminated sheets have a thermal resistance rating exceeding 155°C, high temperatures can still impact their performance. Prolonged exposure to temperatures above this threshold may degrade the material’s properties and reduce its service life. Therefore, strict temperature control is essential during use.
While GPO-3 laminated sheets maintain good electrical performance in humid environments, their mechanical properties may degrade under high humidity conditions. To ensure stable material performance, environmental humidity must be carefully managed during operation.
Proper consideration must be given to the physical and electrical performance requirements when installing and maintaining GPO-3 laminated sheets. Improper handling can lead to damage or reduced performance. It is crucial to follow the manufacturer’s installation and maintenance guidelines to ensure correct usage.
GPO-3 laminated sheets are sensitive to certain chemicals, and prolonged exposure may lead to material degradation or changes in performance. In practical applications, contact with harmful chemicals should be avoided to protect the material’s integrity.
Matrix Resin: High-quality unsaturated polyester resin
Reinforcing Material: Continuous glass fiber mat or fabric
Filling System: Flame-retardant fillers such as aluminum hydroxide
Impregnation: Glass fiber is fully impregnated in resin

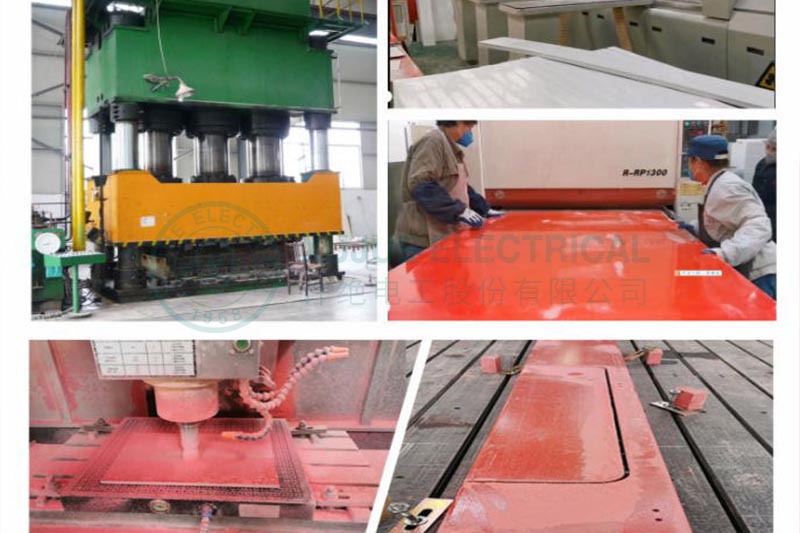

Lamination Molding: Pressed into sheets under high temperature and pressure
Post-Curing Treatment: Ensures complete cross-linking reaction
Quality Control: Rigorous electrical and mechanical performance testing
Machining: CNC machined into the required shape and size
Standard Thickness: 2.0mm to 25mm
Common Sizes: 1000x2000mm, 1250x2000mm
Colors: Red, White
Standard Grade: General electrical insulation applications
High Temperature Grade: Long-term high-temperature operating environments
High Mechanical Strength Grade: Structural support applications
Smooth Finish: Standard electrical applications
Rough Surface: Enhanced adhesion
Special Coating: Improved weather resistance or arc resistance
Transformer Components: Insulating blocks, end rings, phase spacers
Switchgear: Circuit breaker insulation components, partitions
Motor Insulation: Slot wedges, end insulation components
Power Transmission and Distribution Equipment: Cable supports, insulating brackets
Arc Protection: Arc baffles, arc-extinguishing chamber components
Mechanical Structural Components: High-strength insulating structural components
Railway Electrification: Insulated rail seats, electrical connectors
Solar Inverters: Insulation Support Structure
Wind Power Generation: Generator Insulation Components
Electric Vehicles: Charging Equipment Insulation Components
Authentic GPO-3 sheets are certified by Underwriters Laboratories (UL), a recognized safety testing organization in the United States. Each genuine sheet carries an individual UL Recognition File Number. When purchasing, always ask the manufacturer for this UL file number to verify the authenticity of the product.
Genuine GPO-3 sheets have a CTI (Comparative Tracking Index) rating of up to 600V. Using professional testing equipment and methods to measure the CTI is one of the key ways to determine whether the sheet is genuine.
According to international standards, the density of genuine GPO-3 sheets ranges from 1.81 to 1.83 and contains no fillers. This characteristic ensures the sheet’s reliability and stability. Therefore, accurately measuring the material’s density is another effective method for verifying authenticity.
GPO-1: Basic type. Overall performance meets general usage requirements.
GPO-2: Optimized type. It has superior mechanical strength, heat resistance, and arc resistance.
GPO-3: Flame-retardant type. It adds inorganic flame-retardant fillers, and is suitable for high-temperature and high-pollution environments.
NEMA Standard: Complies with NEMA GPO-3 specifications
IEC Standard: IEC 60893 series standards
UL Certification: UL 1446 Insulation System Certification
CSA Certification: Canadian Standards Association Certification
Raw Material Inspection: Resin and glass fiber quality testing
Process Control: Monitoring of temperature, pressure, and time parameters
Finished Product Testing: Electrical, mechanical, and physical performance testing
Batch Traceability: Complete quality traceability system
GPO-3 machined parts and GPO-3 boards, as a high-performance thermosetting polyester insulation material, have become an important basic material in the electrical equipment manufacturing industry due to its flame retardancy, insulation, mechanical strength, and good processing performance. GPO-3 demonstrates broad application prospects in switchgear, new energy equipment, and rail transportation.
Choosing a qualified supplier of GPO-3 sheets and GPO-3 machined parts can help improve product performance and market competitiveness.
