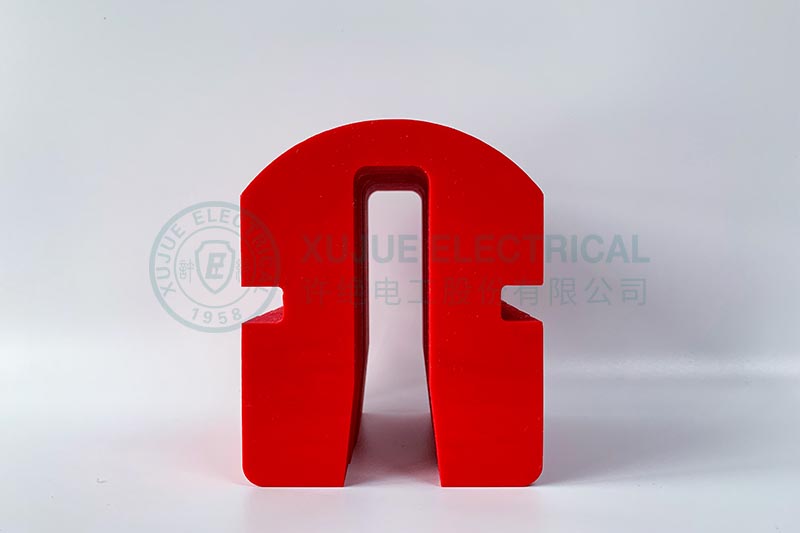

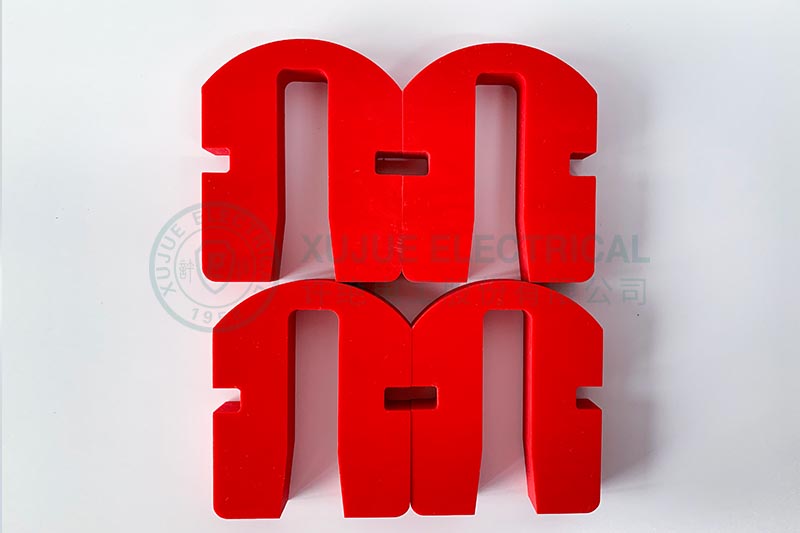

GPO-3 is a high-performance glass fiber reinforced polyester molding compound widely recognized in the industry. When high-quality GPO-3 sheets are precision CNC machined, the resulting GPO-3 parts provide reliable protection for switchgear, motors, and high-voltage electrical appliances.
This article will elaborate on the core characteristics of GPO-3 material—heat resistance and arc resistance—and discuss why CNC precision machining is an important way to obtain high-performance insulation components.
During the operation of electrical equipment, temperature rise is an inevitable physical phenomenon. If the heat resistance of the insulation material is insufficient, prolonged exposure to high temperatures will cause the material to soften, deform, or even carbonize, leading to short-circuit faults.
High-quality GPO-3 sheets have a heat resistance rating of F (155°C). This is reflected in the following aspects:
Under continuous high-temperature conditions, the dimensional changes of CNC GPO-3 machined parts are minimal, maintaining precise fit tolerances.
Even during long-term operation at high temperatures, the rate of degradation of its physical and electrical properties is far lower than that of ordinary plastics (such as PVC or epoxy resin).
GPO-3 itself has good self-extinguishing properties, meeting the UL 94 V-0 flame retardant rating requirements, and can effectively prevent the spread of fire in the event of abnormally high temperatures.
For high-voltage switchgear, circuit breakers, and contact systems, electrical arcing is one of the primary threats. The instantaneous temperature generated by an arc can reach several thousand degrees Celsius, with extremely strong erosive effects.
Arc resistance is a key indicator in determining whether an insulating material is suitable for high-voltage applications. According to ASTM D495 testing standards, GPO-3 laminates typically achieve an arc resistance of over 180 seconds. This performance is reflected in the following aspects:
When an arc occurs, GPO-3 does not quickly form conductive carbonized paths like ordinary materials. Its unique polyester matrix produces non-conductive residues under arcing conditions, effectively preventing continuous tracking and arc propagation.
Insulating barriers and phase separators made from CNC-machined GPO-3 components significantly reduce the risk of equipment downtime caused by tracking or flashover, thereby extending maintenance intervals.
Compared with traditional processing methods, CNC machining of GPO-3 sheets offers significant advantages:
Hole positions and dimensional tolerances can be controlled within ±0.05 mm
Ensures alignment and consistency during multi-component assembly
Utilizes specialized cutting tools and high-speed equipment
Prevents defects such as delamination and burrs during machining
CNC machining is ideal for standardized mass production
Ensures consistent dimensions and performance across each production batch
Used as phase barriers, support components, and insulating structural parts to enhance overall system safety.
Applied as arc chamber partitions and insulating supports, fully utilizing their excellent arc resistance.
Used for clamping parts, support structures, and insulation components to ensure stable operation.
Serve as busbar supports and insulating barriers, maintaining proper electrical clearance and mechanical stability.
Suitable for insulating structural components in high-temperature and high-load operating environments.
When sourcing GPO-3 parts, consider the following:
Whether high-density, premium-grade GPO-3 raw materials are used
Whether the manufacturer has advanced CNC precision machining capabilities
Whether deburring, chamfering, and surface finishing processes are applied
If required, whether the products comply with UL or IEC certifications
In high-voltage insulation solutions, CNC GPO-3 machined components have become critical elements for ensuring the safe and stable operation of power systems. This is due to their excellent heat resistance and arc resistance, combined with the precision and consistency enabled by CNC manufacturing.
If you are looking for high-precision insulation components that can withstand high temperatures and resist arc impact, feel free to contact us today!
