In core power transmission and distribution equipment such as power transformers, high-voltage switchgear, and large motors, the selection of insulating materials directly affects operational safety and service life.
If you are sourcing 10mm–100mm electrical laminated wood machined parts and require excellent high-voltage resistance and superior mechanical strength, you are in the right place. This article explains why electrical laminated wood is the preferred material for high-voltage insulating structures and how to customize high-precision components based on your specific requirements.
Electrical laminated wood, also known as insulating laminated wood, is a composite material manufactured by impregnating high-quality birch or beech veneers with special insulating resins (such as epoxy or phenolic resin), then pressing them under high temperature and high pressure.
Compared with traditional solid wood or standard insulating pressboard, electrical laminated wood combines the natural toughness of wood fibers with the insulating properties of resin. It is especially suitable for applications that require both high mechanical load-bearing capacity and excellent electrical insulation performance.
When selecting materials, a single insulating property is often insufficient. Electrical laminated wood excels in the following two dimensions:
During the vacuum pressure impregnation process, electrical laminated wood fills the fiber gaps within the wood, significantly improving its insulation resistance.
High Dielectric Strength: The vertical dielectric strength of electrical laminated wood is typically above 10-18 kV/mm, effectively resisting the impact of high-voltage electric fields.
Corona Resistance: Compared to ordinary insulating paperboard, it exhibits a longer lifespan in partial discharge environments, reducing the risk of insulation failure due to electrical aging.
This is the biggest advantage of electrical laminated wood compared to other insulating materials (such as SMC or pure paperboard).
High Compressive Strength: The horizontal compressive strength of electrical laminated wood can reach 80-120 MPa. Even in high-temperature environments (such as transformer oil), it maintains excellent dimensional stability and will not creep due to excessive pressure.
Excellent Bending Toughness: Compared to more brittle insulation materials, laminated wood possesses good toughness. It is not prone to cracking during installation or when subjected to short-circuit impacts.
Purchasing electrical laminate is more than just buying boards. It’s about getting precisely machined parts. We offer one-stop CNC precision machining services to ensure every product meets your drawings:
High-Precision Cutting: We use CNC machining centers to ensure dimensional tolerances are within ±0.1mm, eliminating the need for on-site re-grinding.

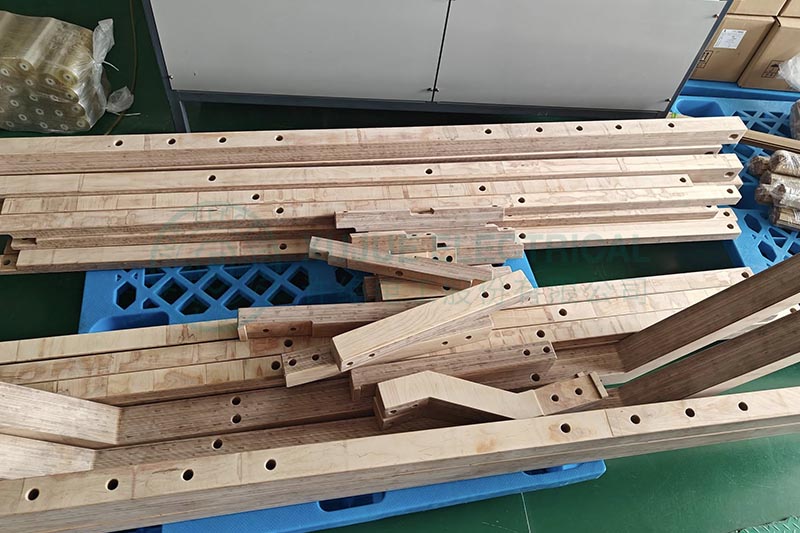

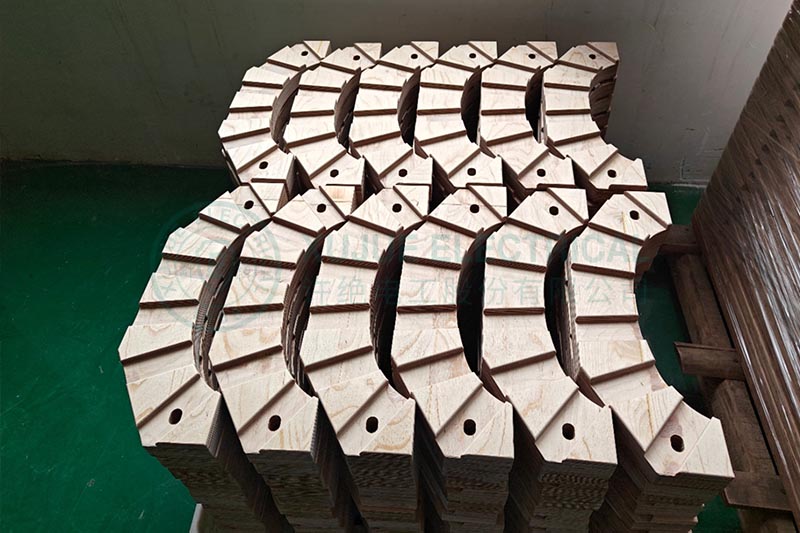

Complex Structure Forming: We support various processes including grooving, drilling, milling, and turning. Whether it’s irregularly shaped blocks, curved end rings, or threaded insulating screws, we can process them all.
Surface Treatment: We provide chamfering, deburring, and surface moisture-proof coating to ensure product integrity during transportation and installation.
In the actual procurement process, it is recommended to focus on the following factors:
Uniform wood density
Sufficient resin impregnation
No bubbles, no delamination
Whether it has the ability of CNC precision processing
Dimensional tolerance control capabilities
Surface treatment quality
Do they provide selection advice?
Do they support customized designs?
Do they have experience in electrical applications?
Direct supply from the factory offers a price advantage
Stable delivery time
If you are sourcing 10mm-100mm electrical laminate wood components for your transformer, switch, or motor projects and have specific technical requirements for high voltage resistance and high mechanical strength, please contact us immediately.
From standard-sized sheets to complex precision-machined parts, we are committed to providing safe and reliable insulation solutions for the global power transmission and distribution industry.
