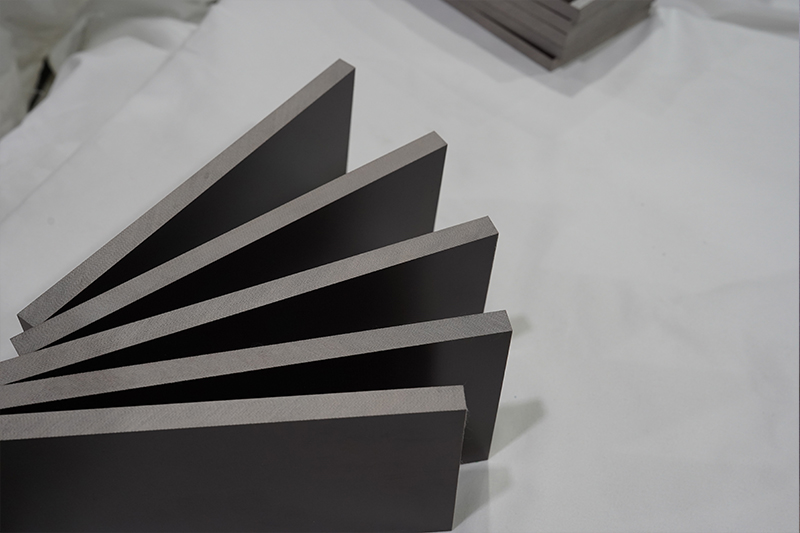

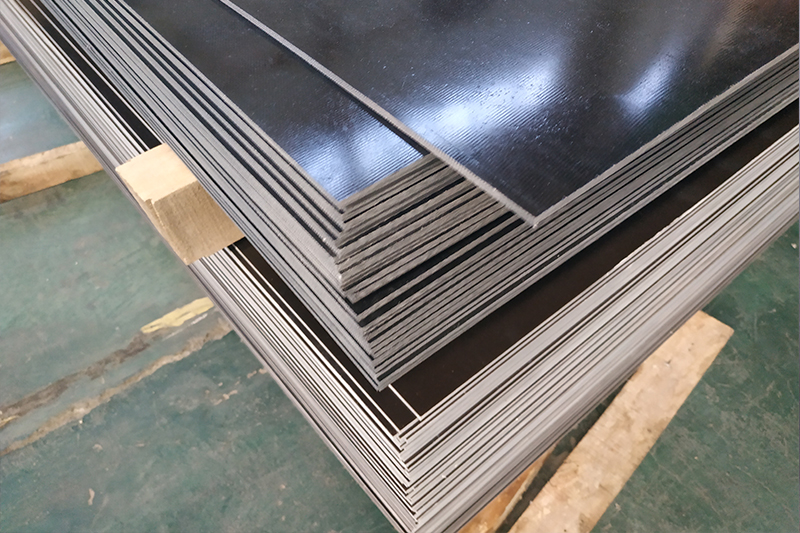

3240 epoxy board is a commonly used insulating material in electronics, electrical engineering, and machinery. Black products are widely used in industrial settings. This article details the key technical aspects of black 3240 epoxy board, including material definition, coloring requirements, preparation processes, and production flow.
3240 epoxy board uses electronic-grade fiberglass cloth as reinforcement, impregnated with epoxy resin, and then manufactured into a laminate through a hot-pressing process. This material possesses excellent electrical insulation properties, mechanical strength, and heat resistance. It is mainly used in the manufacture of insulating components for motors and electrical equipment. Its standard factory colors are natural colors such as yellow and light brown. Black 3240 epoxy board is widely used in the market due to its specific functional and aesthetic attributes.
Appearance requirements: A black appearance is suitable for scenarios with clear specifications for equipment appearance.
UV protection: The black material absorbs ultraviolet rays, reducing the material’s aging rate and extending its service life. Maintenance requirements: Black surfaces are less prone to showing stains, reducing daily maintenance workload.
Special application requirements: In equipment manufacturing in industries such as automotive and aerospace, there are standardized material colors, and black is a common and suitable color.
The preparation of black 3240 epoxy board is mainly achieved through the following two processes. And pigment addition is the primary technical route:
This is the most widely used and cost-effective technical solution for preparing black 3240 epoxy boards. The specific implementation is as follows:
Carbon Black Application: Carbon black and other black pigments are used. They have strong tinting strength and good chemical stability, ensuring color uniformity and durability.
Mixing Process: During the epoxy resin mixing stage, the black pigment is thoroughly stirred with the epoxy resin to ensure uniform dispersion of the pigment in the resin system.
Curing Effect: After hot-press curing, the pigment particles are firmly bonded to the board, forming a stable black appearance that is not easily faded.
Some companies use a surface coating with a black coating to achieve color modification, but this process is less commonly used in 3240 epoxy board production. Because surface coatings may affect the insulation performance of the board, overall coloring is the primary method in industrial production.
1. Raw Material Preparation: Prepare epoxy resin, electronic-grade fiberglass cloth, and qualified black pigment according to production requirements.
2. Resin Preparation: Place the epoxy resin and black pigment into a dedicated mixing device and achieve uniform mixing through mechanical stirring.
3. Impregnation Treatment: The fiberglass cloth is continuously passed through a resin tank to ensure full adsorption of the colored epoxy resin.
4. Drying and Pre-curing: The impregnated fiberglass cloth is sent to a drying device to remove solvent components from the resin, completing pre-curing.
5. Hot Press Molding: The pre-cured blank is placed in a hot press and pressed into shape according to the set high temperature and high pressure parameters to ensure complete resin curing.
6. Cutting and Inspection: Cut the molded board into specified specifications according to customer requirements and test indicators such as insulation performance, mechanical strength, and color uniformity using professional equipment.
Use pigments that meet industry standards. Low-quality pigments can easily lead to uneven color of the board and may reduce the mechanical and insulation properties of the material.
The uniformity of resin and pigment mixing, and the temperature and pressure parameters for hot pressing, must be strictly controlled according to production standards to avoid affecting the quality of the finished product.
The pigments and resin materials used in production must comply with RoHS and other environmental directives.
Q1: Is the price of black 3240 epoxy board higher than that of regular colored products?
Generally, black 3240 epoxy board is slightly more expensive than regular colored products due to the increased pigment costs, but the increase is not significant.
Q2: Will the black coloring process affect the insulation performance of the board?
Reputable companies use standardized coloring processes that will not change the original electrical insulation performance of the 3240 epoxy board.
Q3: Can other colors of 3240 epoxy board be customized besides black?
Custom colors of 3240 epoxy board are available.
Black 3240 epoxy board achieves overall coloring by adding pigments such as carbon black during the resin formulation stage. This meets application requirements such as appearance specifications and UV protection while preserving the original properties of the material. This product is widely applicable in industrial equipment manufacturing. When selecting, it is recommended to prioritize products from certified suppliers to ensure color stability and quality reliability.
For purchasing black 3240 epoxy board or to learn more about technical parameters, please feel free to contact us. We will provide high-quality epoxy board products that meet industry standards and professional technical support services.
