Currently, the electronic and industrial manufacturing sectors are experiencing an increasing demand for high-performance, reliable, and cost-effective materials. FR4 epoxy rods, as a key insulating structural material, possess excellent comprehensive properties and have become the preferred choice for numerous applications. Engineers and procurement personnel who understand the characteristics and applications of FR4 epoxy rods can provide practical assistance for the projects they are responsible for. This article will provide a detailed introduction to the definition, core characteristics, application fields, and selection methods of FR4 epoxy rods.

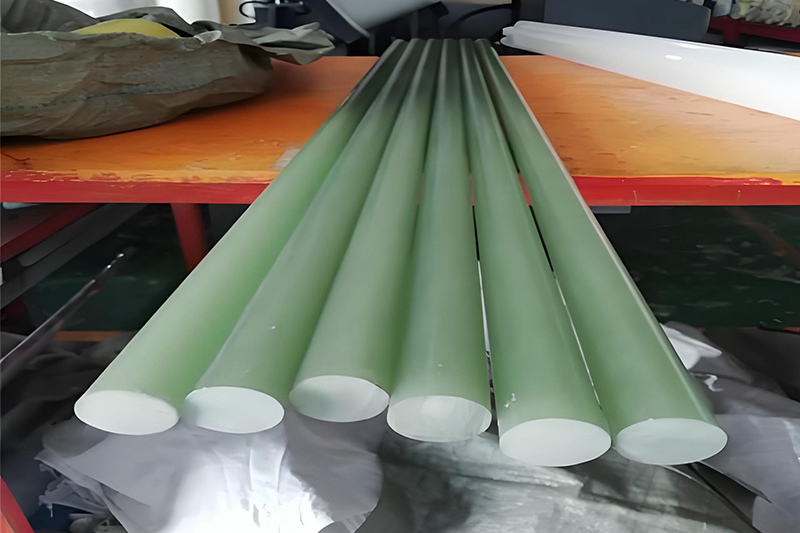

An FR4 epoxy rod is a composite material. Its manufacturing process：First immerse electronic-grade glass fiber cloth in epoxy resin, then form a rod shape by high-temperature baking and hot-pressing curing. The “FR” stands for “flame retardant”, indicating that this material complies with the UL94 V-0 level flame retardant standard. In terms of properties, it belongs to industrial laminated products and has high mechanical strength and good electrical insulation performance. It is an appropriate base material for manufacturing electrical equipment, electronic components, and mechanical parts.
The reason why FR4 epoxy rods have been widely used lies in the following core advantages:
This material maintains stable dielectric properties in high-frequency and high-voltage environments. Therefore, it can be used in the insulation parts of electrical equipment such as transformers, insulators, and circuit breakers.
The structure of FR4 epoxy rods enables them to have excellent resistance to bending, impact, and wear. They can withstand large mechanical stresses, thus maintaining their own structural stability.
It complies with UL94 V-0 standards and can effectively prevent the spread of flames in case of fire, providing safety for critical equipment.
Its working temperature range is wide, and the glass transition temperature is usually above 130°C. This temperature range can adapt to the working environment of most electronic devices.
FR4 epoxy rods hardly absorb moisture and can resist the erosion of most solvents, acids, and alkalis. Therefore, they are suitable for harsh working environments.
When performing mechanical processing such as cutting, drilling, milling, and turning on FR4 epoxy rods, the operation difficulty is low. They can be made into various complex-shaped parts.
FR4 epoxy rods have diverse functions and play an indispensable role in multiple industries. The specific applications are as follows:
– Insulation components: FR4 epoxy rods are manufactured into components such as transformer frames, insulation pads, connection boards, and relay bases.
– Circuit board testing fixtures: It can be used as a probe board for testing fixtures. Its insulation and dimensional stability play a crucial role in the test results.
– High-voltage equipment: In switchgear and transformers, FR4 epoxy rods can be used as supporting and insulating components.
– Gears and bearings: Due to their low wear and high strength, FR4 epoxy rods are often used to manufacture non-metallic gears, bearings, and pulleys. They also have self-lubricating and low-noise characteristics.
– Structural support components: In machinery equipment, FR4 epoxy rods can act as insulation supports, connecting rods, and bushings.
Confirm that the material complies with industry standards, such as the NEMA LI 1-1998 standard, which is the basis for quality and performance.
Based on the design drawings, select the appropriate rod diameter and length, and clearly specify the processing tolerance requirements.
Clarify the core requirements of the application scenario, such as focusing on mechanical strength, electrical performance, or arc resistance.
Choose a reputable supplier to ensure reliable material sources and the provision of material certification reports.
FR4 epoxy rods are a high-performance engineering material that performs well in electrical insulation, mechanical support, and environmental resistance. Whether enhancing the performance of existing products or developing new equipment, FR4 epoxy rods are a practical choice.
If you need selection advice and quotations for FR4 epoxy rod products, please contact us directly!
