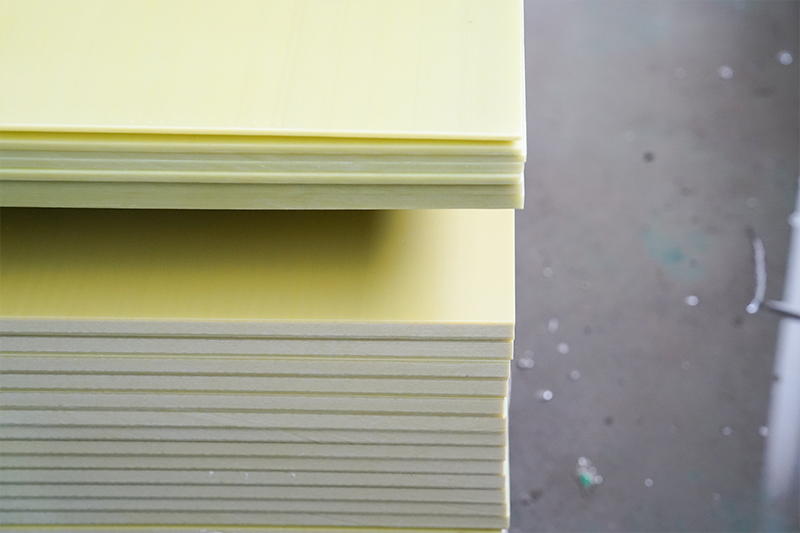

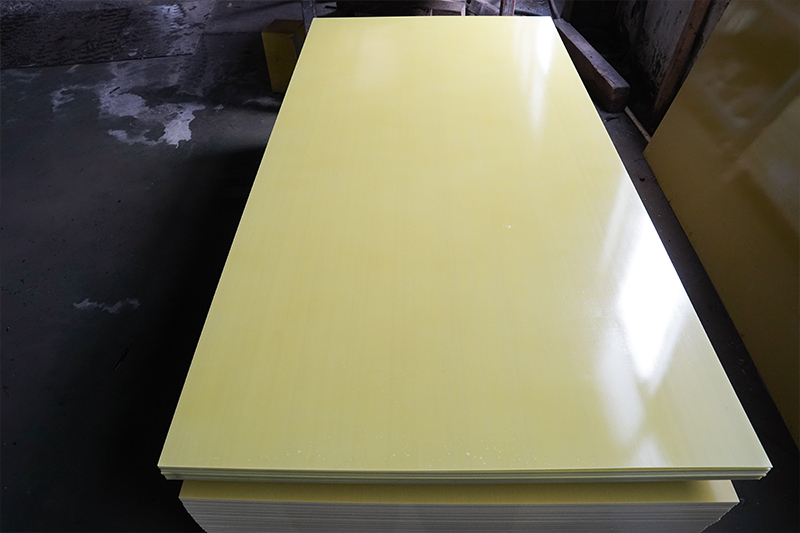

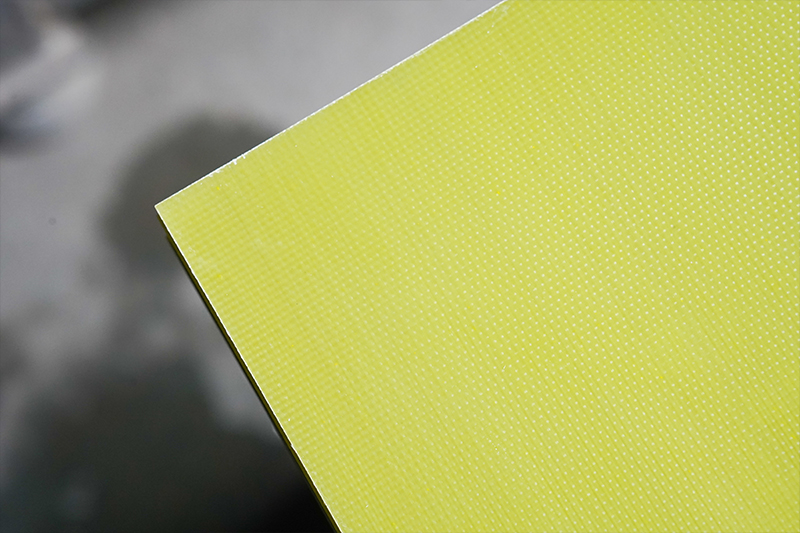

3240 epoxy resin fiberglass laminate features excellent electrical insulation, mechanical strength, and heat resistance, making it widely used in insulation components for motors, electrical appliances, and electronic equipment. However, during long-term operation, environmental factors can gradually cause the material to age. Accurately identifying signs of aging is essential for preventing equipment failure and ensuring operational safety. This article explains in detail the aging characteristics, inducing factors, and preventive measures for 3240 epoxy board.
Identifying early signs of aging helps enable timely maintenance and prevent equipment failures. The following are the most common aging manifestations:
Long-term exposure to high temperatures, ultraviolet radiation, or humid environments causes oxidation and degradation of the epoxy resin. This leads the originally light-yellow surface to gradually darken or turn yellow, and in some cases, develop localized spots.
With repeated thermal expansion and contraction cycles, internal stress accumulates within the material, resulting in visible cracks or micro-cracks. These cracks significantly reduce insulation performance and serve as an important indicator of aging.
Aged 3240 epoxy boards show reduced bending and compressive strength. Typical signs include:
♦ Boards becoming easier to break or delaminate
♦ Noticeable brittleness
♦ Increased edge chipping during machining
These issues are typical results of epoxy polymer chain degradation.
As insulation materials age, the following electrical performance reductions may occur:
♦ Lower dielectric strength
♦ Reduced surface resistance
♦ Higher likelihood of leakage or dielectric breakdown
♦ Increased moisture absorption in high-humidity environments
Such deterioration directly impacts the safety of electrical equipment.
Aging makes the molecular structure of the material less stable, causing it to absorb moisture from the air more easily, leading to:
♦ Dimensional changes
♦ Deformation
♦ Further decline in insulation performance
After long-term use in high-temperature environments, the material may emit a slight burnt smell or show traces of resin decomposition, usually accompanied by darkened color and a roughened surface.
Long-term operation in environments above 155°C leads to thermo-oxidative degradation.
Under strong electric fields (high-frequency or high-voltage environments), partial discharge occurs within the material, damaging the insulation structure.
Humidity, UV exposure, ozone, and chemical solvents accelerate material aging.
Continuous vibration or cyclic mechanical loads cause fatigue damage and micro-cracks.
The following measures can help slow down the aging process and extend service life:
Strict temperature control: Ensure equipment operates within the thermal class of 3240 epoxy board (155°C) and avoid long-term overheating.
Improve heat dissipation: Maintain adequate ventilation to prevent localized overheating. And add cooling components if necessary.
Protection against moisture and contamination: In humid, dusty, or chemically corrosive environments, seal the equipment or apply protective coatings.
Reduce mechanical stress: Avoid unnecessary internal stress and continuous vibration during installation and design. And use proper mounting methods.
Regular inspection and maintenance: Establish inspection routines to observe appearance changes and periodically measure insulation resistance and other key parameters.
When the 3240 epoxy boards in your equipment show significant darkening, surface chalking or cracking, or when routine inspections reveal abnormal insulation resistance, it is a strong indication that aging has already occurred.
Once these aging signs appear, immediate replacement is recommended. Continuing to use aged 3240 epoxy boards greatly increases the risk of insulation breakdown, short circuits, and even fires.
Regular inspection and equipment maintenance are the best ways to prevent such risks. By monitoring appearance and electrical performance, potential issues can be detected early and addressed before they cause failures.
