In modern electrical engineering, the reliability, safety, and service life of equipment are the core standards for evaluating its quality. As power electronics technology develops towards higher power density and higher integration, the operating temperature of electrical components is constantly increasing, placing higher demands on the heat resistance of insulation materials. High-temperature DDP insulation paper, as a special insulation material developed specifically for high-temperature environments, has gradually become a commonly used insulation material in fields such as high-frequency transformers, motors, and new energy vehicle electronic control systems due to its high-temperature resistance and stable electrical properties.

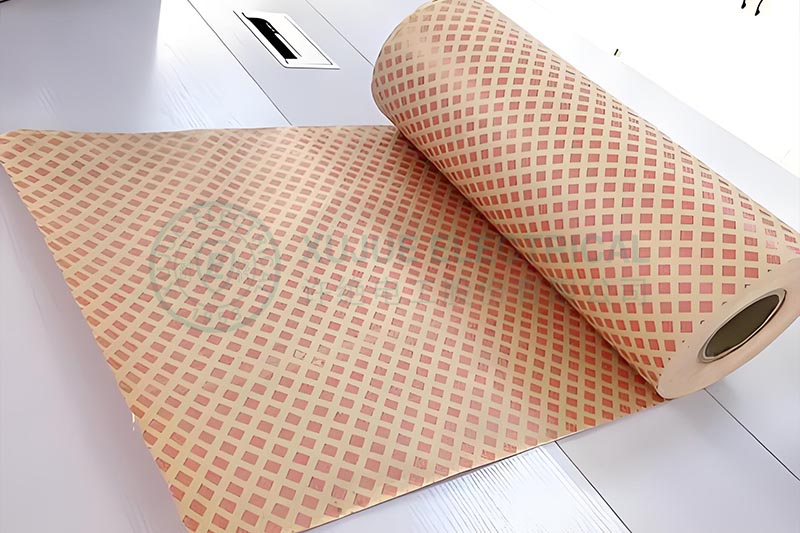

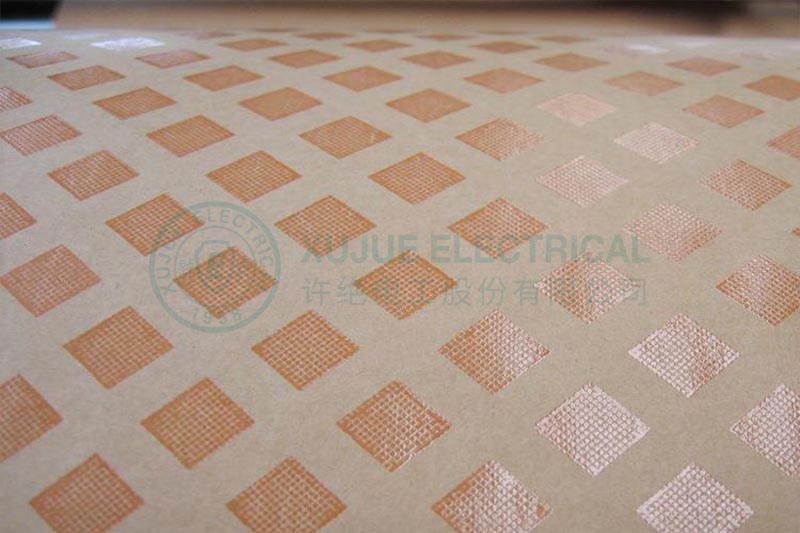

DDP insulation paper, short for Diamond Dotted Paper, is a composite insulation material made by coating the surface of electrical insulation paper with diamond-shaped epoxy resin dots using a special process. This resin softens and bonds under heat, forming a stable whole within the winding structure, improving the mechanical strength and insulation effect of the winding.
Electrical insulating paper substrate
Epoxy resin dispensing layer
Thermosetting bonding structure
This design allows the material to form a stable insulation structure after the winding is heated and cured, ensuring long-term stable operation of the equipment.
The specifications of DDP insulation paper may vary slightly among different manufacturers. The following are common industry reference parameters:
| Item | Parameter |
| Material Type | Diamond Dotted Paper |
| Insulation Class | Class F |
| Base Paper Thickness | 0.13, 0.18, 0.25 mm |
| Resin Dot Spacing | 5 – 10 mm |
| Application | Interlayer insulation for windings |
Specific parameters can be adjusted according to customer requirements.
Using high-temperature DDP insulation paper can provide greater safety and performance support for electrical equipment. Its key advantages include the following:
This material can operate continuously at temperatures up to 155°C, with even higher short-term heat resistance. It is suitable for equipment operating under high load and high-frequency conditions, helping improve heat dissipation and reducing the risk of insulation failure caused by high temperatures.
DDP insulation paper maintains high dielectric strength and insulation resistance even in high-temperature environments. This helps reduce the risk of partial discharge and electrical breakdown, ensuring greater electrical safety for equipment.
This insulation paper offers excellent tensile strength and tear resistance, and it does not easily become brittle or crack under high temperatures.
At the same time, it provides good flexibility, allowing it to conform to coils, slots, and other irregular components. It is suitable for automated winding and coil insertion processes, helping improve manufacturing efficiency.
High-temperature DDP insulation paper has excellent resistance to common media used in electrical equipment, such as insulating varnishes, coatings, and cooling liquids. It is not easily dissolved, swollen, or corroded by these substances. This helps maintain the stability and service life of the insulation system.
The product usually complies with international environmental directives such as RoHS. During high-temperature operation, it does not release harmful gases. At the same time, it offers flame-retardant properties, meeting safety standards required for electrical equipment.
Thanks to its excellent insulation performance and bonding characteristics, DDP insulation paper is widely used in the manufacturing of various electrical equipment. Typical application areas include:
DDP insulation paper is a commonly used winding insulation material in motor manufacturing. It is suitable for:
Industrial motors
High-voltage motors
Variable-frequency motors
Generators
As an interlayer insulation material for windings, it helps enhance the overall structural strength of the winding and ensures the long-term stable operation of motors.

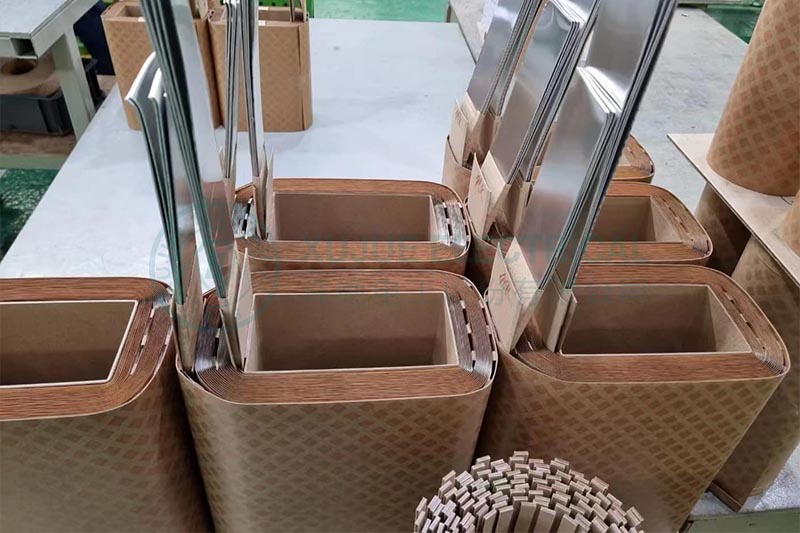

During transformer manufacturing, DDP insulation paper is mainly used for:
Interlayer insulation of coils
Winding fixation
After heat curing, DDP insulation paper forms a stable insulation structure, which helps improve the operational reliability of transformers.
In addition to motors and transformers, DDP insulation paper can also be used in various types of power equipment, such as generators，reactors，electromagnetic devices
In these applications, DDP insulation paper provides reliable electrical insulation protection, helping equipment operate safely under demanding working conditions.
High-temperature DDP (Diamond Dotted Paper) insulation paper, with its excellent high-temperature resistance, electrical insulation performance, and bonding properties, has become one of the commonly used insulation materials in motor and transformer manufacturing.
If you need electrical insulation materials suitable for high-temperature operating conditions, or wish to equip motors, transformers, and new energy vehicle electronic control systems with insulation protection, high-temperature DDP insulation paper is an option.
As an insulation material supplier, we offer DDP insulation paper products in various thicknesses and specifications, and can provide cutting, die-cutting processing services, and technical selection support according to specific application scenarios, providing you with insulation solutions.
