Among the vast array of industrial materials and components, phenolic paper tubes may seem ordinary, yet they play a vital role. While perhaps inconspicuous, they are essential components in industries such as electronics, textiles, packaging, and automotive. Why have phenolic paper tubes gained widespread acceptance? This article will delve into their characteristics and fully demonstrate the practical value they create for modern industry.

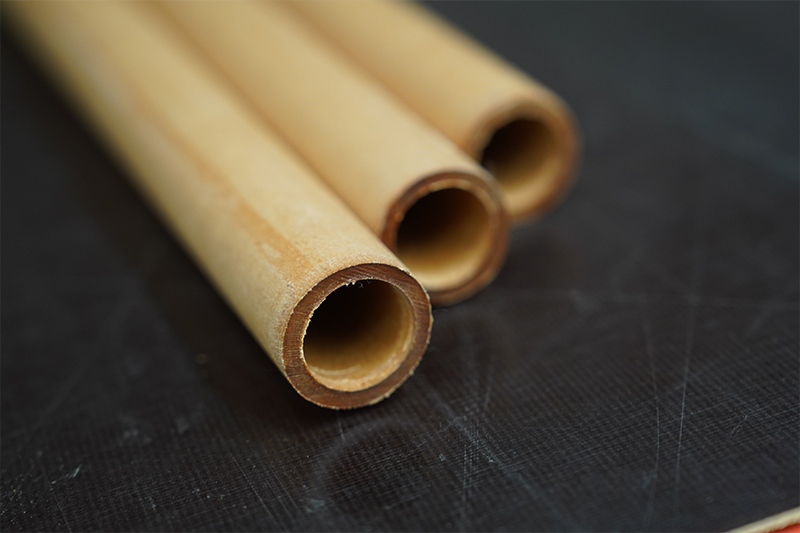

Phenolic paper tubes are made from insulating impregnated paper as a base material, impregnated with phenolic resin, and then wound and heat-cured.
This manufacturing process gives phenolic paper tubes excellent physical and chemical properties, making them a reliable and user-friendly material in the industrial field.
The key to the widespread application of phenolic paper tubes lies in their diverse practical properties. The following are some of their most prominent characteristics:
This is one of the core characteristics of phenolic paper tubes. They can withstand high voltages, effectively preventing current leakage, and operate stably even in high-voltage environments. Therefore, it is often used as insulating components in transformers, motors and various electrical equipment.
Phenolic paper tubes offer high hardness and toughness, capable of withstanding significant radial pressure and axial tension. When used as winding bobbins or structural components, they are resistant to deformation or breakage, ensuring smooth production and enhancing product durability.
After undergoing a phenolic resin curing treatment, the paper tubes can withstand high temperatures without noticeable performance degradation in high-temperature environments. They also block moisture intrusion, preventing performance degradation or mold growth due to moisture, thereby extending their service life.

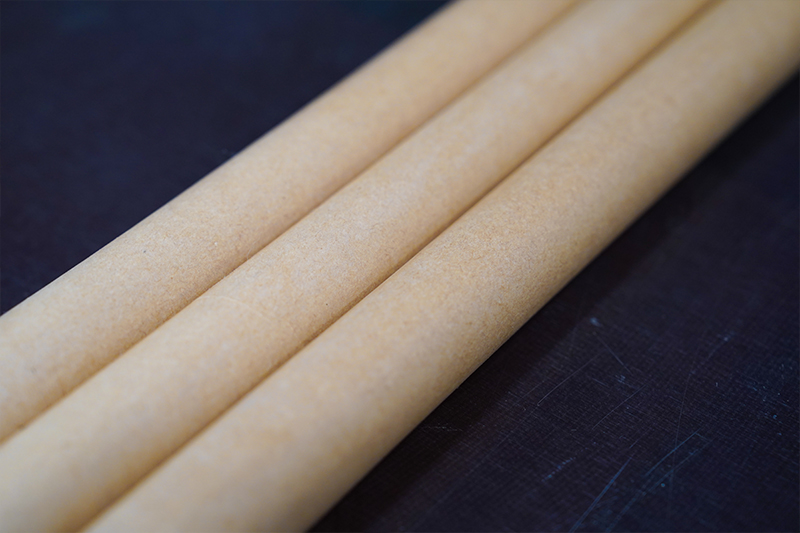

The phenolic paper tubes have a smooth surface, and even minor wrinkles on the inner wall do not affect their voltage resistance. The end faces are neatly cut, ensuring uniform wall thickness. When used as transformer frames or supports for electrical equipment, they provide a secure support for components, preventing deformation or loosening.
The aforementioned properties of phenolic paper tubes directly translate into tangible industrial benefits, helping companies improve production efficiency and reduce costs:
Thanks to their excellent electrical insulation and strong mechanical strength, phenolic paper tubes can reduce equipment failures such as short circuits and breakdowns, ensuring the normal operation of production lines and end products, and reducing losses caused by downtime.
Because of their heat, moisture, and corrosion resistance, components using phenolic paper tubes can maintain their performance for extended periods, even in harsh industrial environments, extending the life of the entire equipment or product.
Phenolic paper tubes are easy to process, giving designers and engineers greater freedom in product design. Whether used as frames for precision electronic components or bobbins for textile machinery, they can meet customized requirements, accelerating product development.
Phenolic paper tubes offer excellent performance at a reasonable price. Their durability reduces component replacement and maintenance costs. In the long run, it can help companies save a lot of money.
In distribution transformers up to 6300 kVA, phenolic paper tubes are often used directly as winding frames, providing both insulation and support.
In large transformers above 110 kV, they are used as lead wire casings and tap changer casings, ensuring safe operation in high-voltage environments.
As the insulation framework for motor windings, phenolic paper tubes prevent current leakage and withstand mechanical stress.
In high-voltage electrical equipment, their high-pressure and heat-resistant properties make them a preferred choice for key components such as screw insulation and brackets.
In the chemical industry, phenolic paper tubes can be used to make corrosion-resistant piping or equipment components, resisting corrosion from acids, alkalis, and other chemicals.
In industrial plants, their heat resistance and mechanical strength make them suitable for ventilation or conveying systems in high-temperature environments.
Phenolic paper tubes are not just any ordinary industrial material. They represent a practical product honed through the integration of materials science and industrial needs. Their exceptional electrical insulation, high mechanical strength, excellent heat and moisture resistance, and exceptional workability create irreplaceable value. Companies using phenolic paper tubes not only obtain high-performance components but also experience significant improvements in safety, durability, design flexibility, and cost control.
