When thinking of modern electrical equipment and motors, phenolic paper laminated tubes may not be the first thing that comes to mind. However, this classic material is an indispensable key component in countless industrial applications. With its unique insulating properties, excellent mechanical strength, and high cost-effectiveness, phenolic paper tubes and the structural components made from them occupy a vital position in the electrical engineering field.
This article will deeply analyze the core characteristics of phenolic paper laminated tubes and comprehensively explain their common applications across various industries.

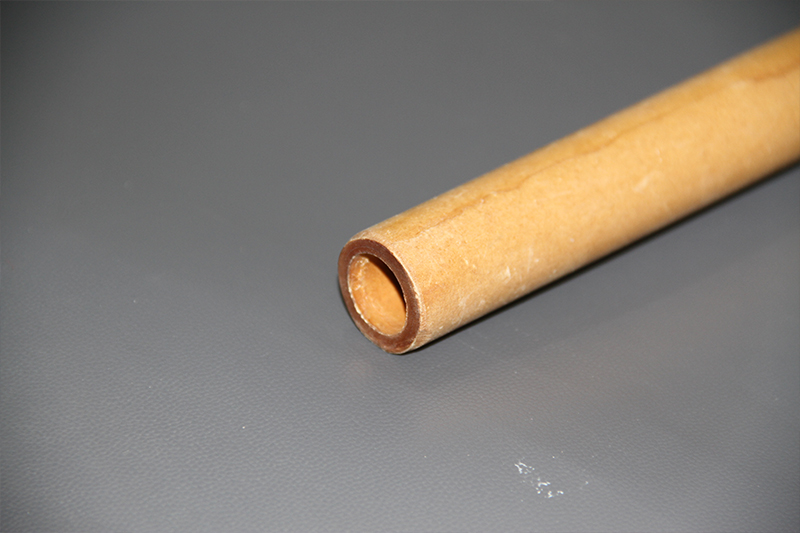

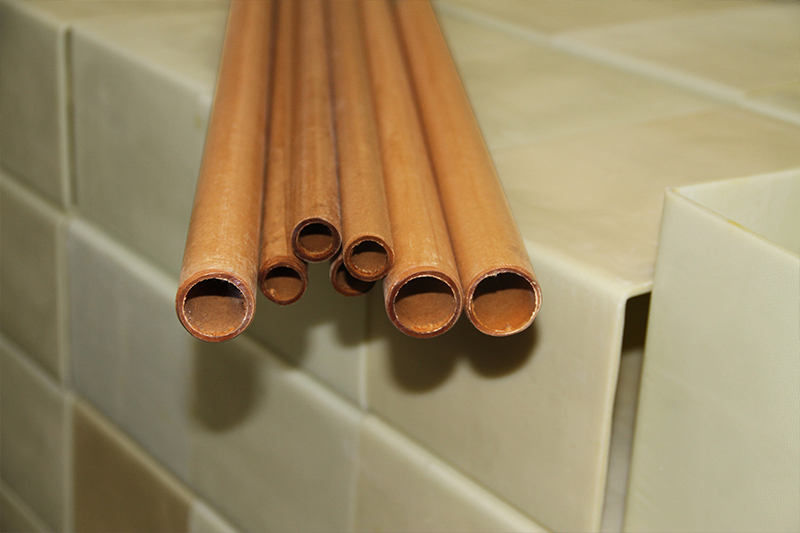

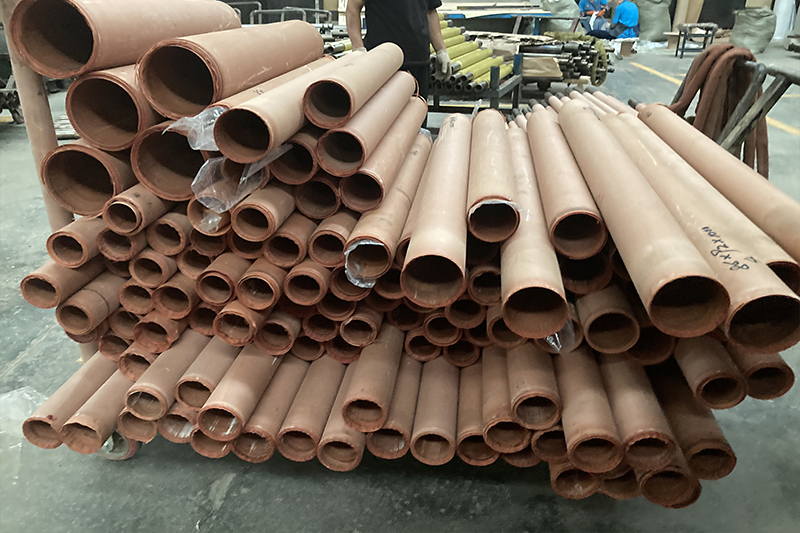

Phenolic paper laminated tubes are made from high-quality insulating fiber paper as a base material. After being impregnated with phenolic resin, they are rolled and heat-cured to form a tubular insulation material. This manufacturing process gives them a range of properties suitable for harsh electrical environments:
– Excellent electrical insulation: Phenolic paper laminated tubes have high dielectric strength, effectively isolating current and preventing short circuits and breakdown risks.
– Excellent mechanical strength: Phenolic paper laminated tubes have a dense structure, high mechanical strength and hardness, and can withstand electromagnetic forces, vibration, and certain external impacts generated by motor operation.
– Good Heat Resistance: Phenolic paper laminated tubes typically have an operating temperature rating of Class B (130°C) or Class F (155°C), meeting the temperature rise requirements of most motors.
– Easy Processing: Phenolic paper laminated tubes can be machined through turning, milling, drilling, and cutting, making them easy to create insulating components with various complex shapes.
– Economical and Practical: Compared to some high-performance engineering plastics or composite materials, phenolic paper laminated tubes offer significant cost advantages and a high cost-performance ratio.
Phenolic paper laminated tubes and the structural components they are formed from primarily serve the dual functions of insulation and structural support. The following are their core and common application areas:
In small and medium-sized motors and generators, phenolic paper laminated tubes are the most commonly used support and insulation sleeve material for rotor and stator winding ends.
Applications: Used as winding end support rings, winding insulation sleeves, slot wedges, and interphase insulation.
Purpose: Phenolic paper laminated tubes primarily secure windings, preventing displacement and wear from electromagnetic and centrifugal forces. They also provide a reliable electrical insulation barrier between the windings and the core, and between the windings and the casing.
Transformers are another important application for phenolic paper laminated tubes.
In oil-immersed transformers, phenolic paper laminated tubes are widely used as insulation frames and interwinding insulation sleeves. They maintain excellent insulation properties in transformer oil, while their robust structure provides stable support for the windings.
Dry-type transformer: Phenolic paper laminated tubes also serve as insulation barriers and structural support components between windings, ensuring safe distances and mechanical stability between windings.
High-voltage switchgear, instrument transformers, lightning arresters, and other equipment place extremely high demands on the electrical and mechanical properties of insulation materials.
Applications: Used in key components such as insulating pull rods, operating rods, and support columns.
Purpose: In this type of equipment, phenolic paper tubes must withstand high voltage surges while also transmitting mechanical operating forces. Their high mechanical strength and excellent insulation properties provide a perfect combination.
When selecting insulation materials for a new project, consider choosing phenolic paper laminated tubes if the application meets one or more of the following conditions:
– Balancing insulation performance and structural support requirements.
– Operating environments subject to vibration interference or requiring high mechanical strength.
– Budget constraints without compromising performance and reliability.
– Applications for standard electrical equipment such as traditional motors and transformers.
Despite the continuous emergence of new materials, phenolic paper laminated tubes continue to be widely used in electrical insulation and structural components due to their proven reliability, excellent overall performance, and high cost-effectiveness. Phenolic paper laminated tubes play a key role in equipment such as motors, transformers, and switchgear, making them a versatile engineering material.
Whether you’re a design engineer, procurement specialist, or equipment maintenance technician, a thorough understanding of the characteristics and application scenarios of phenolic paper laminated tubes will help you make more accurate material choices and ensure the long-term stability of your equipment.
