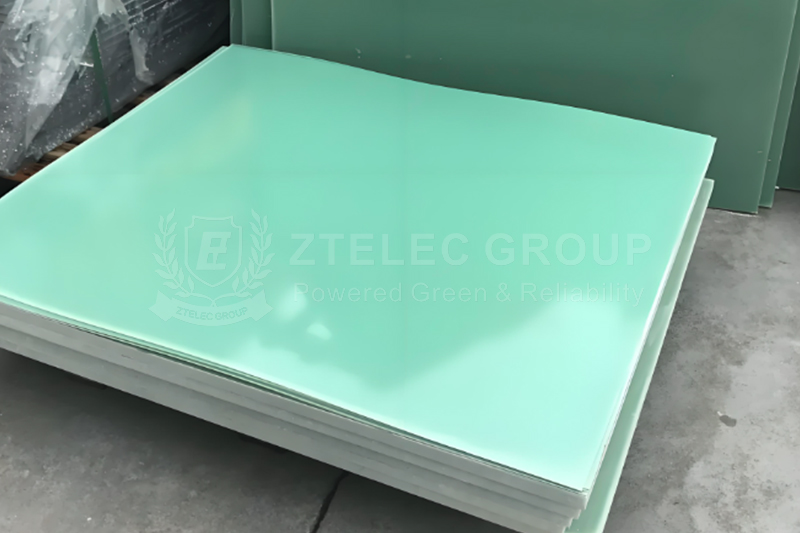

In the electronics industry, FR5 epoxy sheet stands out for its unique properties. So, what kind of manufacturing process gives it its unique characteristics? The answer lies in its high temperature and high pressure lamination process, and the resulting high heat resistance and excellent electrical properties.
The production of FR5 epoxy sheet requires a set of sophisticated processes. First, the glass fibers are woven into cloth to form the basic structure of the sheet. Then, the woven glass fiber cloth is immersed in epoxy resin so that the fibers are completely covered with resin. Next, the impregnated glass fiber cloth is stacked and laminated under high temperature and high pressure to form a solid sheet prototype. Under high temperature, the epoxy resin cures to form a stable chemical bond, enhancing the overall performance of the sheet. Finally, the cured sheet is cut into the required size and shape according to customer needs.
FR5 epoxy sheet adopts a modified epoxy resin system, and greatly improves its heat resistance by adding special curing agents and toughening agents. Even in high-temperature environments, this sheet can still maintain good stability and effectively avoid problems such as delamination or deformation. For example, in some electronic devices that need to be in a high-temperature working environment for a long time, FR5 epoxy sheet can continue to play a role stably and ensure the normal operation of the equipment.
During the manufacturing process, low-expansion glass fiber cloth is used and combined with nano-scale fillers. This material combination effectively reduces the thermal expansion rate of the sheet, ensuring that the size of the sheet can remain stable when the temperature changes, which is particularly suitable for the application requirements of high-precision circuits. In fields such as aerospace and precision instruments that require extremely high circuit accuracy, this feature of FR5 epoxy sheet has been fully utilized.
FR5 epoxy sheet adopts halogen-free flame retardant system, and achieves efficient flame retardant effect with the help of phosphorus-nitrogen synergy. At the same time, this technology can also reduce the emission of toxic smoke, which fully meets the strict environmental protection standards. This makes FR5 epoxy sheet not only excellent in performance, but also reaches a high level in environmental protection, and is widely used in the manufacture of electronic equipment with strict environmental protection requirements.
Through multi-stage temperature control and pressure regulation, combined with vacuum-assisted technology, the resin is evenly distributed inside the sheet, effectively eliminating bubbles. This precision process greatly improves the consistency and reliability of the dielectric layer, providing a strong guarantee for the stable transmission of electronic signals. In fields such as communication equipment that have high requirements for signal transmission, FR5 epoxy sheet is highly favored due to this process advantage.
Using ultra-smooth copper foil and plasma activation technology, it can significantly enhance the adhesion of the copper layer and reduce signal transmission loss, which is very suitable for high-frequency and high-speed circuit design. In cutting-edge technology fields such as 5G communications and high-speed computers, the demand for high-frequency and high-speed circuits is growing, and the high-performance surface treatment process of FR5 epoxy sheet makes it an ideal material choice.
Each link of the FR5 epoxy sheet manufacturing process is closely coordinated. From the careful selection of raw materials to the innovative optimization of processing technology, every step is dedicated to improving the performance and quality of the sheet. It is these unique features that make FR5 epoxy sheet show strong competitiveness in the field of high-end electronics and become an indispensable and important material in the modern electronics industry.
