In high-voltage electrical equipment and modern power systems, the performance of insulation materials directly affects equipment safety, operational stability, and service life. With the rapid development of composite material technology, fiberglass pull extruded bars—known for their excellent mechanical strength, stable electrical properties, and reliable structural characteristics—have gradually become key insulating and supporting components in transformers, GIS, circuit breakers, motors, and other electrical equipment.
This article analyzes the performance features and typical applications of fiberglass pull extruded bars, providing a comprehensive overview to help manufacturers and design engineers select the right materials with confidence.

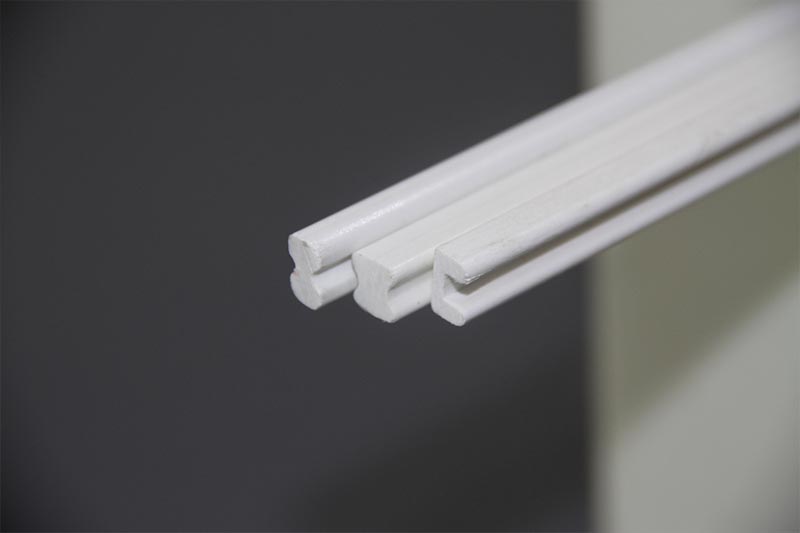

Fiberglass pull extruded bars are continuous fiber-reinforced composite materials produced through the pultrusion process. They are typically made from reinforcement fibers such as fiberglass or carbon fiber, combined with epoxy, polyester, or other resins. This manufacturing method endows fiberglass pull extruded bars with high strength, lightweight characteristics, and excellent corrosion resistance, making them suitable for applications requiring precision and durability.
The widespread adoption of fiberglass pull extruded bars is driven by their outstanding performance in the following areas:
Fiberglass pull extruded bars use high-strength fibers such as carbon fiber and fiberglass as reinforcement materials. Their tensile strength and stiffness far exceed those of traditional metal materials. At the same time, their low density makes them significantly lighter, supporting lightweight structural design—for example, reducing component mass in aerospace and automotive applications.
Example: Carbon fiber pultruded rods can be up to five times stronger than steel, while weighing only one-fourth as much.
The resin matrix forms a protective barrier, giving fiberglass pull extruded bars strong resistance to chemicals, moisture, and UV radiation. This makes them ideal for chemical processing environments, marine applications, and outdoor facilities—where metal materials typically suffer from rust or corrosion.
Fiberglass pull extruded bars are non-conductive and provide strong thermal insulation. They are suitable for electrical equipment, insulating supports, and electronic components. In high-voltage transmission systems, they are commonly used as insulating rods or connecting components.
Fiberglass pull extruded bars exhibit minimal dimensional change under temperature variations, allowing them to remain stable in both high- and low-temperature environments. This is particularly critical for precision instruments and structural assemblies.
Fiberglass pull extruded bars can be fabricated through cutting, drilling, bonding, and other processing methods. They can also be customized in shape, size, and color based on specific project requirements. The pultrusion process is flexible and well-suited for both large-scale and small-batch production.
Many fiberglass pull extruded bar materials are recyclable or degradable, aligning with sustainability goals. Their long service life and low maintenance requirements make them ideal for long-term operational projects.

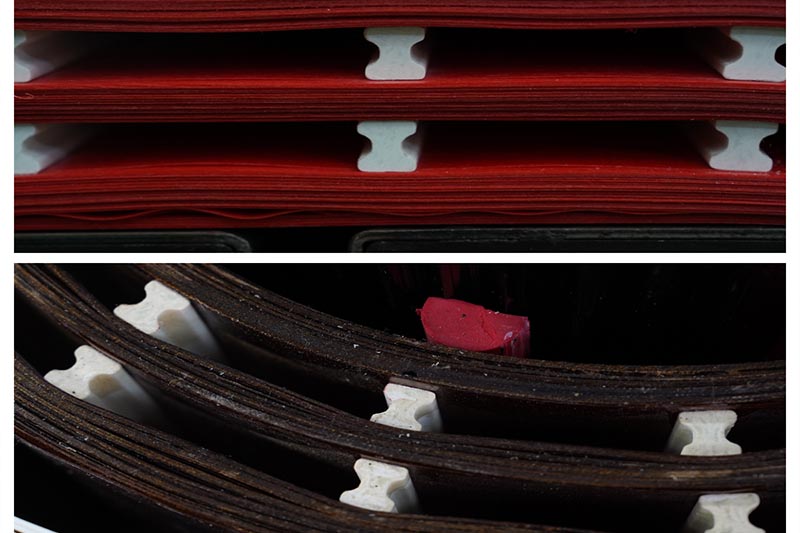

Insulating tie rods / bands
Coil support rods
Core clamping structural components
Insulating connectors for adjustment mechanisms
Their high-strength characteristics allow them to withstand the mechanical forces generated during short-circuit events.
Insulating support rods
Insulating connecting rods for operating mechanisms
Conductive circuit spacing rods
Support structures for spring mechanisms
Fiberglass pull extruded bars are suitable for applications involving high voltage and intense mechanical impact.
Slot wedge support rods
Stator structural reinforcement rods
Insulating positioning components
Fiberglass pull extruded bars provide excellent vibration resistance and heat tolerance.
Core rods inside composite insulators
Pultruded support structural components
Lightweight components in power plant equipment
They perform well in applications requiring both lightweight construction and high insulation levels.
Insulating structural components in wind turbines
Internal insulating supports in photovoltaic inverters
Fiberglass pull extruded bars provide reliable material support for renewable energy devices.
Q1: What are the advantages of fiberglass pull extruded bars compared to metal materials?
A1: Fiberglass pull extruded bars are lighter, highly corrosion-resistant, and electrically insulating, making them ideal for applications that require weight reduction and long-term durability.
Q2: What is the service life of fiberglass pull extruded bars?
A2: Under normal operating conditions, fiberglass pull extruded bars can last for several decades with minimal maintenance costs.
Q3: Are fiberglass pull extruded bars recyclable?
A3: Yes, they can be recycled, depending on the type of resin used. It is recommended to consult the supplier for specific recycling options.
Q4: How should fiberglass pull extruded bars be installed and maintained?
A4: Installation is simple and usually involves mechanical fastening or bonding. Maintenance generally only requires regular cleaning and inspection.
As a high-performance composite material, fiberglass pull extruded bars are widely used in industrial and technical applications due to their high strength, lightweight, corrosion resistance, and excellent electrical insulation. Understanding their performance features and application scenarios can help you use them more efficiently to optimize your projects. For further guidance or customized solutions, contact a professional supplier or refer to relevant industry standards.
