How do I know when my insulation material needs replacing?

by:ZTELEC     Time: 2025-04-16

Insulation materials are of great significance in electrical equipment and systems. They can effectively prevent dangerous conditions such as current leakage, short circuits, and electric shocks, and effectively ensure the safe operation of equipment and personnel. However, over time, coupled with the influence of environmental factors and usage conditions, insulation materials will gradually age and damage, which will reduce their insulation performance. Therefore, accurately determining whether insulation materials need to be replaced is the core of ensuring the safe and stable operation of electrical equipment.

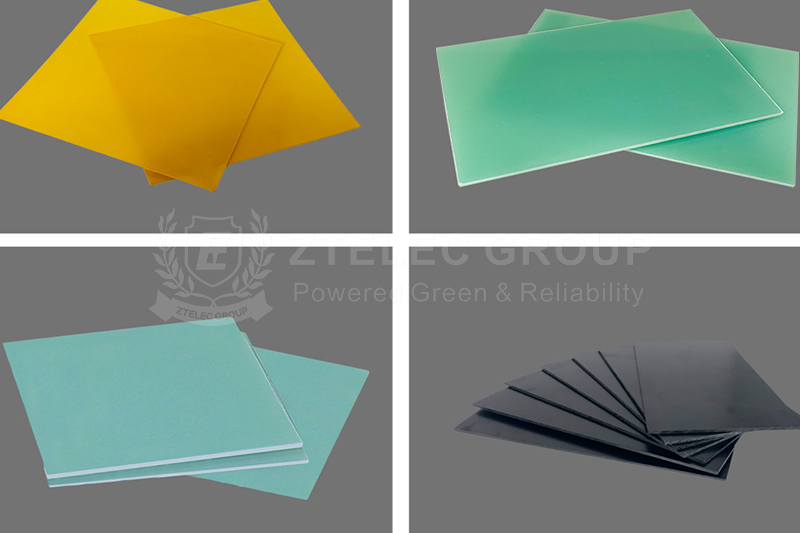

G10

Appearance inspection

·Signs of aging: Carefully check the surface of the insulation material and pay attention to whether there are aging phenomena such as discoloration, cracks, embrittlement, and peeling. Once the color of the insulation material is obviously yellowed or darkened, or a large number of fine cracks appear, it indicates that its performance has declined. At this time, we need to consider replacing it.

·Damage: Carefully check whether the insulation material has mechanical damage, such as scratches, gaps, and perforations. These damages are likely to damage the insulation performance. If the degree of damage is more serious, these insulation materials must be replaced in time.

·Signs of moisture: Closely observe whether there are signs of moisture such as condensation, water stains, or mold on the surface of the insulation material. Moisture will reduce the insulation resistance and affect the insulation performance. If the moisture cannot be solved by drying, the insulation material needs to be replaced.

Electrical performance test

·Insulation resistance measurement: Use insulation resistance tester to measure the insulation resistance of each part of the switch cabinet regularly. If the insulation resistance value is lower than the specified standard value, it means that the insulation performance has deteriorated and the insulation material may need to be replaced.

·Withstand voltage test: Use withstand voltage test to detect the ability of insulation materials to withstand voltage. If insulation breakdown, flashover, etc. occur during the test, it means that the insulation material can no longer meet the use requirements and must be replaced immediately.

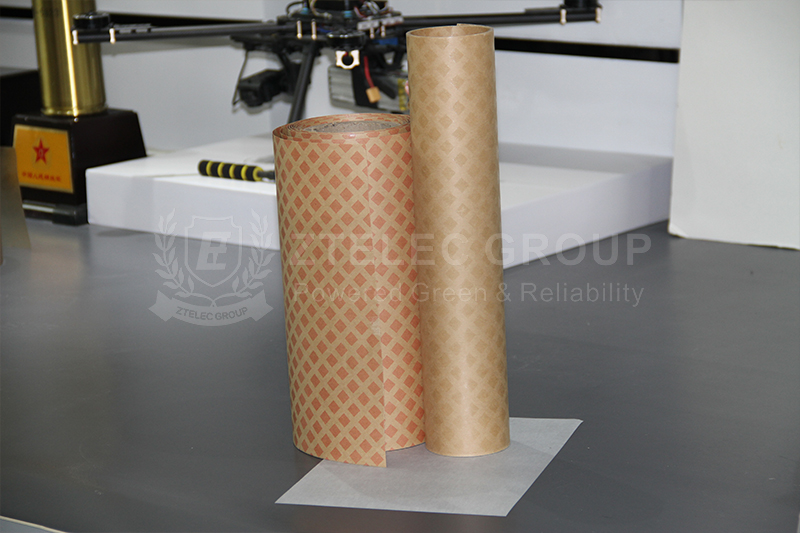

DDP

Operating environment assessment

· Temperature impact: If the switchgear is operated in a high temperature environment for a long time (for example, the ambient temperature often exceeds 40℃), the aging speed of the insulation material will be accelerated. Even if the current appearance and electrical performance test results are temporarily normal, the staff must pay close attention and plan replacement in advance according to the operating time and temperature conditions.

· Pollution: If there are pollutants such as dust, oil, and chemical corrosive gases in the environment where the switchgear is located, these pollutants will adhere to the surface of the insulation material, resulting in reduced insulation performance. When the pollution is so serious that it is difficult to restore the insulation performance through cleaning, the insulation material should be replaced.

·Service life: It can be judged based on the service life of the equipment. Generally speaking, insulation materials have a certain service life under normal operating conditions. If the switchgear has been in operation for a long time and is close to or even exceeds the expected service life, a replacement plan should be formulated even if the current insulation performance is acceptable.

To determine whether the insulation material needs to be replaced, it is necessary to comprehensively consider factors such as appearance inspection, electrical performance testing, and operating environment. In actual operation, it is necessary to regularly inspect and test the insulation materials and establish a sound insulation material management file. In this way, the aging and damage of the insulation materials can be detected in time, and the safe operation of electrical equipment can be effectively guaranteed.
