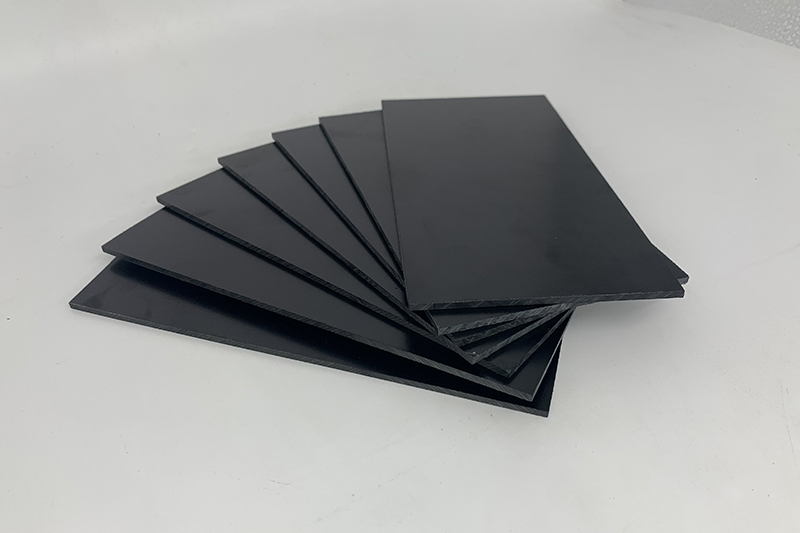

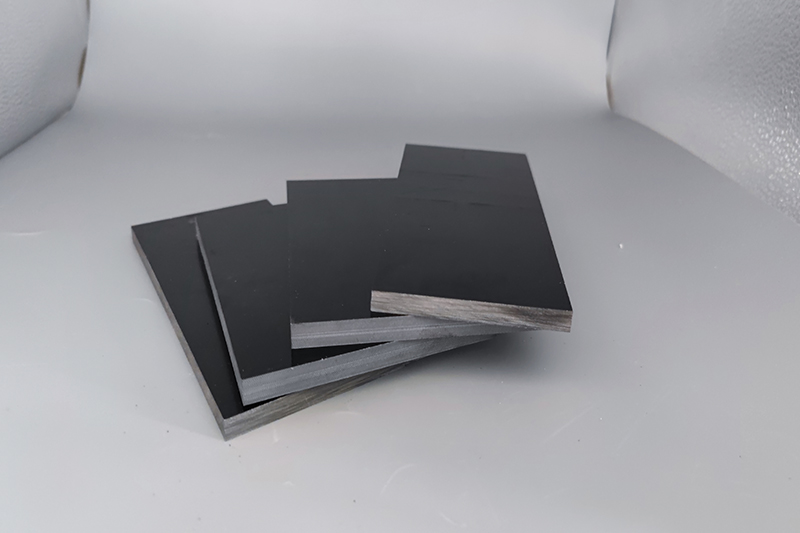

In high-end fields such as precision electronics, semiconductor manufacturing, and aerospace, the choice of equipment materials is directly related to product yield and system stability. Black FR4 anti-static fiberglass boards have become the core basic materials for key scenarios in these industries due to their unique performance combination. This article will analyze the core reasons why high-end equipment uses black FR4 anti-static fiberglass boards from six dimensions.
Static-sensitive environment requirements: High-end equipment, such as semiconductor manufacturing equipment, medical precision instruments, aerospace electronic components, etc. is extremely sensitive to static electricity, and electrostatic discharge (ESD) may instantly damage micron-level precision components. Black FR4 anti-static fiberglass boards precisely control the surface resistance in the range of 10⁶–10⁹Ω by adding conductive materials such as carbon fiber or conductive fillers, avoiding the risks caused by charge accumulation from the source.
Comply with industry standards: It fully meets international electrostatic protection standards such as IEC 61340 and ANSI/ESD S20.20, providing rigid protection for equipment safety.
Visual consistency: High-end equipment focuses on the integrity of industrial design. Black panels can naturally hide internal circuits and components, significantly improving the neatness and professional texture of the equipment appearance.
Reducing reflection interference: The black surface can greatly reduce the light reflectivity, effectively avoiding misjudgment of precision components such as optical sensors and cameras due to reflections, especially suitable for scenes that are sensitive to optical environments such as laboratory equipment and automated detection systems.
Resistant to dirt and stains: Compared with light-colored materials, black can reduce stains and scratches, and can maintain the appearance stability in clean rooms or long-term high-frequency use environments.
Mechanical strength: FR4 substrate is a composite of epoxy resin and glass fiber. It has high rigidity, anti-bending and impact resistance. It can stably support heavy components and adapt to high-frequency vibration environments.
Electrical insulation: Although the surface has anti-static function, the substrate still maintains excellent electrical insulation, fundamentally avoiding the risk of circuit short circuit.
High temperature resistance: The glass transition temperature (Tg) of FR4 generally reaches above 140°C, which can easily cope with high-temperature welding processes such as lead-free reflow soldering, and can also adapt to the long-term high-temperature operation environment of equipment.
Corrosion resistance: It has strong resistance to chemical solvents, humid environments and oxidation reactions, and can maintain stable performance in harsh industrial scenarios.
Low outgassing: In vacuum environments (such as semiconductor manufacturing) or aerospace applications, its extremely low outgassing can avoid contamination of sensitive systems.
Processing convenience: FR4 material is easy to drill, cut and surface treat (such as immersion gold, OSP process), and the black anti-static layer can be achieved through mature surface coating or overall doping process, which is suitable for existing manufacturing processes.
Cost-effectiveness: Compared with metal anti-static solutions such as aluminum substrates, black FR4 anti-static fiberglass board has more advantages in cost control, weight optimization and processing difficulty, achieving a balance between performance and cost.
Semiconductor equipment: It can effectively avoid electrostatic adsorption of particles, reduce dust adhesion, and ensure the manufacturing environment of precision products such as wafers.
Medical equipment: It meets the requirements of biocompatibility, and the black appearance can better highlight the professionalism and reliability of the equipment.
Communication equipment: In high-frequency signal transmission scenarios, its anti-static layer can help reduce electromagnetic interference (EMI) and ensure signal stability.
The wide application of black FR4 anti-static fiberglass board in high-end equipment stems from its comprehensive advantages in core performance such as electrostatic protection, environmental adaptation, and process compatibility. With the in-depth development of Industry and intelligent equipment, material suppliers are continuing to innovate through functional integration, environmental upgrades, customized services, and other aspects to further expand their application boundaries.
